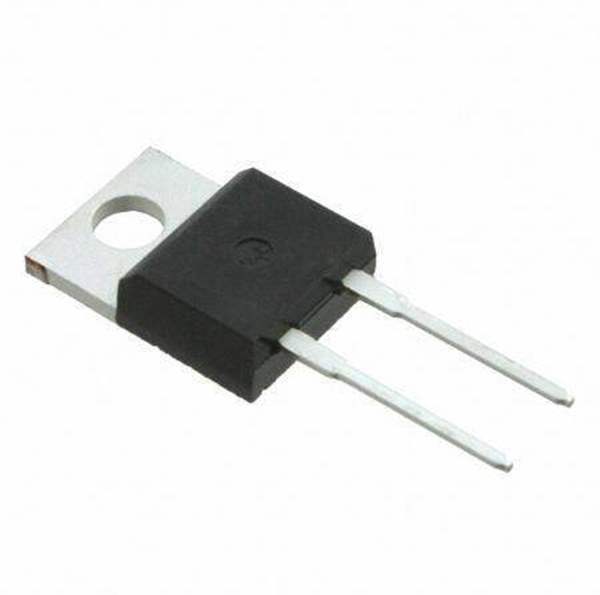

GB05SLT12-220GeneSiC Semiconductor
Same model may have multiple batches, images only for reference.

GB05SLT12-220

Part No GB05SLT12-220
Manufacturer GeneSiC Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SIL CARB 1.2KV 5A TO220-2
Datasheet
GB05SLT12-220 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer GeneSiC Semiconductor
Category Discrete Semiconductor Products Diodes Rectifiers Single Diodes
Packaging  Bulk
Part Status Obsolete
Voltage - DC Reverse (Vr) (Max) 1200 V
Technology SiC (Silicon Carbide) Schottky
Voltage - Forward (Vf) (Max) @ If 1.8 V @ 2 A
Speed No Recovery Time > 500mA (Io)
Current - Reverse Leakage @ Vr 50 µA @ 1200 V
Capacitance @ Vr, F 260pF @ 1V, 1MHz
Win Source Part Number WS1305558-GB05SLT12-220
Ultra Librarian 3D Model Ultra Librarian GB05SLT12-220 CAD Model

Description

Features
● 1200 V Schottky rectifier
● 175 °C maximum operating temperature
● Temperature independent switching behavior
● Superior surge current capability
● Positive temperature coefficient of VF
● Extremely fast switching speeds
● Superior figure of merit QC/IF
