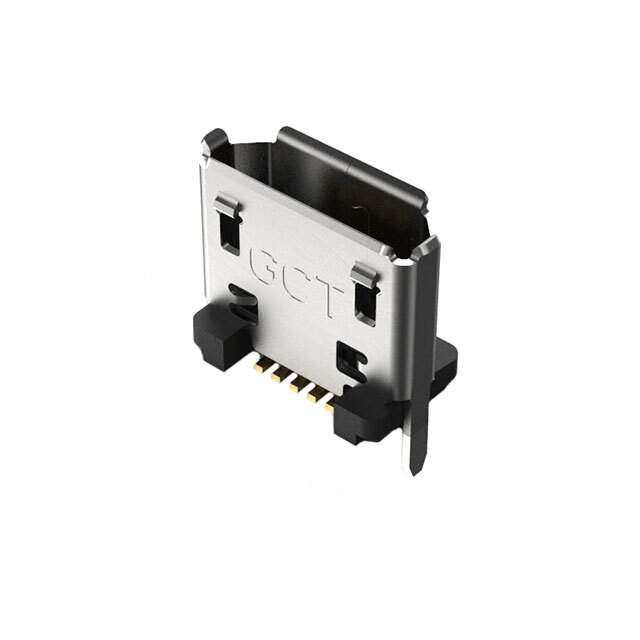

USB3140-30-0170-1-C Real Image
Same model may have multiple batches, images only for reference.

USB3140-30-0170-1-C

Part No USB3140-30-0170-1-C
Manufacturer GCT
Catalog USB, DVI, HDMI Connectors
Description MICRO B SKT, VERTICAL, SMT, 30",
Datasheet
USB3140-30-0170-1-C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 9 Weeks
Features USB - micro B USB 2.0 Receptacle Connector 5 Position Surface Mount, Through Hole
Manufacturer GCT
Series USB3140
Package Reel - TR
Operating Temperature Range -30°C ~ 85°C
Mounting Surface Mount, Through Hole
Family Name USB3140
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 2073-USB3140-30-0170-1-CCT, 2073-USB3140-30-0170-1-CTR, 2073-USB3140-30-0170-1-CDKR
Quantity per package 500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 938353-USB3140-30-0170-1-C
Ultra Librarian 3D Model Ultra Librarian USB3140-30-0170-1-C CAD Model

Description

The USB3140-30-0170-1-C is a USB-micro B USB 2.0 receptacle connector electronic component from GCT. It is a 5 position surface mount, through-hole connector and is a part of the USB3140 series.

  • Manufacturer: GCT
  • Product Name: USB3140-30-0170-1-C
  • Type: USB-Micro B USB 2.0 Receptacle Connector
  • Positions: 5
  • Mounting: Surface Mount, Through-Hole
  • Series: USB3140
  • Operating Temperature: -30 degrees Celsius to 85 degrees Celsius
  • Mounting: Surface Mount, Through-Hole Mounting
  • Package: Reel-TR
  • Family Name: USB3140
  • Category: Connectors
  • REACH: Not Affected
  • ECCN: EAR99
