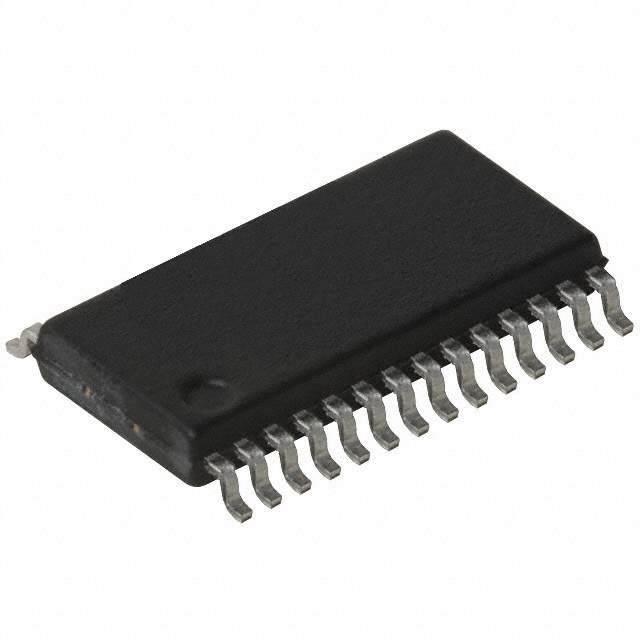

The FT245RL-REEL is a versatile USB to parallel FIFO (First In, First Out) interface integrated circuit, designed and manufactured by FTDI, Future Technology Devices International Ltd. This IC offers a simple and efficient way to transfer data between a USB port and a microcontroller or other digital interface without the need for USB-specific firmware development.

Key Features

• USB 2.0 Full-Speed Compatible: This device is fully compliant with the USB 2.0 specification, ensuring broad compatibility with various USB hosts and devices.
• Easy FIFO Interface: The FT245RL provides a simple FIFO interface for ease of integration with digital circuitry.
• Integrated EEPROM: The onboard EEPROM can be programmed with custom USB descriptors such as Vendor ID (VID), Product ID (PID), and other device parameters.
• Entire USB Protocol Handled: The IC handles all USB signalling and protocols, simplifying the design process and reducing development time.
• Driver Support: FTDI offers royalty-free drivers for major operating systems, which minimizes the need for additional software development.
• Thermal and Power Management: The device includes built-in power-on-reset circuit and thermal shutdown features to protect against over-current and over-temperature conditions.
• Compact Packaging: The FT245RL-REEL comes in a compact, surface-mount package that is suitable for space-constrained applications.

Applications

The FT245RL-REEL is ideal for a wide range of applications, including:

• USB Instrumentation
• Industrial Control
• Data Acquisition Systems
• USB Interface Bridges
• Point of Sale Devices

Product Availability

The 'REEL' suffix indicates that this product is available in tape and reel packaging, making it suitable for automated assembly processes. This packaging format is particularly beneficial for high-volume production requirements.

Conclusion

Overall, the FT245RL-REEL from FTDI is a reliable and efficient solution for adding USB connectivity to a wide array of electronic devices. With its integrated features and support for USB 2.0, it is a popular choice for developers looking for a quick and straightforward way to implement USB interfaces in their products.
