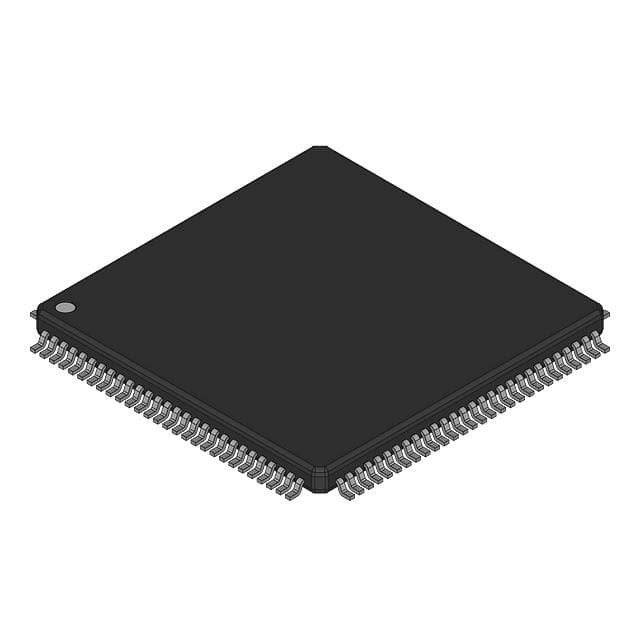

S9S12DG12F1VPVE Freescale Semiconductor - NXP
Same model may have multiple batches, images only for reference.

S9S12DG12F1VPVE

Part No S9S12DG12F1VPVE
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 128KB FLASH 112LQFP / HCS12 series Microcontroller IC 16-Bit 25MHz 128KB (128K x 8) FLASH 112-LQFP (20x20)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Freescale Semiconductor
Series HCS12
Package Bulk
Core Processor HCS12
Core Size 16-Bit
Speed 25MHz
Connectivity CANbus, I2C, SCI, SPI
Peripherals PWM, WDT
Number of I/O 91
Program Memory Size 128KB (128K x 8)
Program Memory Type FLASH
EEPROM Size 2K x 8
RAM Size 8K x 8
Supply Voltage - Operating 2.35V ~ 5.25V
Data Converters A/D 16x10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 105°C (TA)
Mounting SMD (SMT)
Package / Case 112-LQFP
Supplier Device Package 112-LQFP (20x20)
ECCN 3A991A2
HTSUS 8542.31.0001
Other Names 2156-S9S12DG12F1VPVE,FREFRES9S12DG12F1VPVE
Standard Package 1
Win Source Part Number 1090748-S9S12DG12F1VPVE
Ultra Librarian 3D Model Ultra Librarian S9S12DG12F1VPVE CAD Model

Description

The S9S12DG12F1VPVE is a 16-bit microcontroller from the HCS12 series of Freescale Semiconductor.

  • Operating Frequency: 25MHz (Maximum)
  • Program Memory: 128KB (Flash)
  • I/O Pins: 91
  • Data RAM: 8K x 8
  • A/D Data Converters: 16x10b
  • Package: 112-LQFP
  • Supply Voltage Range: 2.35V to 5.25V
  • Connectivity: CANbus, I2C, SCI, and SPI
