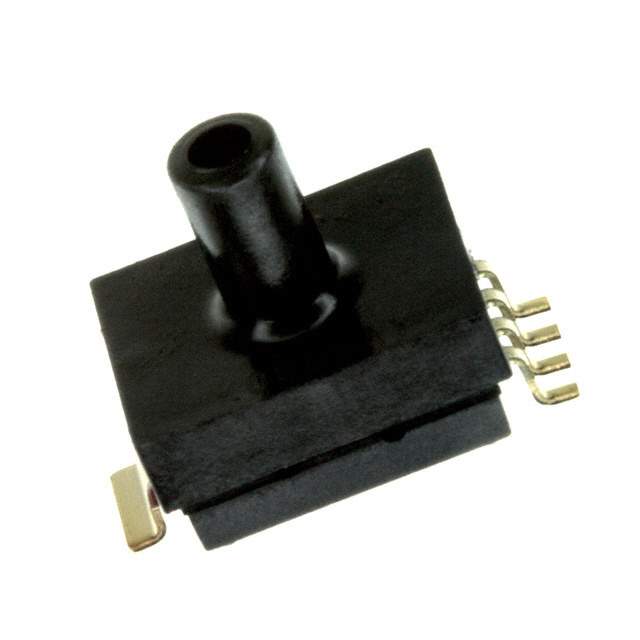

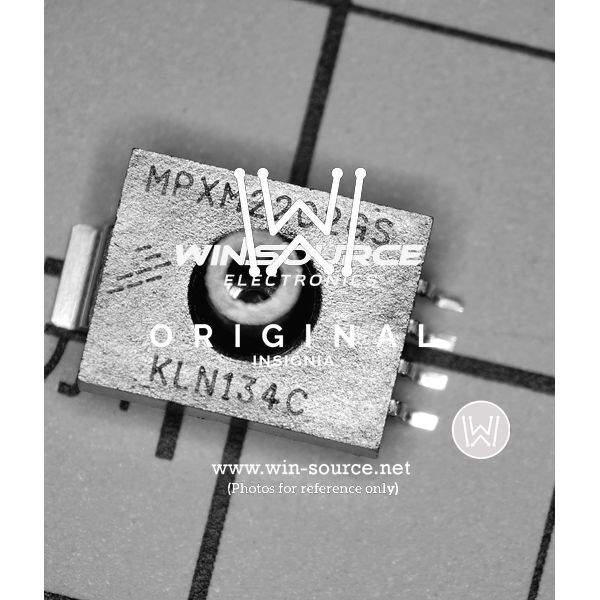

MPXM2202GS Real Image MPXM2202GS real image3645
Same model may have multiple batches, images only for reference.
MPXM2202GS Real Image MPXM2202GS real image3645
MPXM2202GS Real Image MPXM2202GS real image3645
Same model may have multiple batches, images only for reference.

MPXM2202GS

Part No MPXM2202GS
Manufacturer Freescale Semiconductor - NXP
Catalog Pressure Sensors, Transducers
Description SENS PRESSURE 29 PSI MAX MPAK
Datasheet
MPXM2202GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer NXP
Status Active
Pressure Type Vented Gauge
Operating Pressure 29.01 PSI (200 kPa)
Output Type Wheatstone Bridge
Output 0 mV to 40 mV (10V)
Supply Voltage - Operating 10 V to 16 V
Port Size Male - 0.12" (2.97mm) Tube
Port Style Barbless
Features Temperature Compensated
Termination Style PCB
Maximum Pressure 58.02 PSI (400 kPa)
Temperature Range - Operating -40°C to 125°C
Case / Package 5-MPAK
Win Source Part Number 024333-MPXM2202GS
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Motor Drive & Control, Robotics, Medical, Test & Measurement
Ultra Librarian 3D Model Ultra Librarian MPXM2202GS CAD Model

Description

The NXP 024333-MPXM2202GS is a highly popular electronic component among engineers and technicians.

  • Applications: Sensors and transducers
  • Pressure Type: Vented gauge
  • Port Size: Male - 0.12" (2.97mm) tube
  • Feature: Temperature compensated
  • Output: 0 mV to 40 mV (10V)
  • Maximum Pressure: 58.02 PSI (400 kPa)
  • Perfect for: Motor drive and control, robotics, medical, test, and measurement applications
