Same model may have multiple batches, images only for reference.

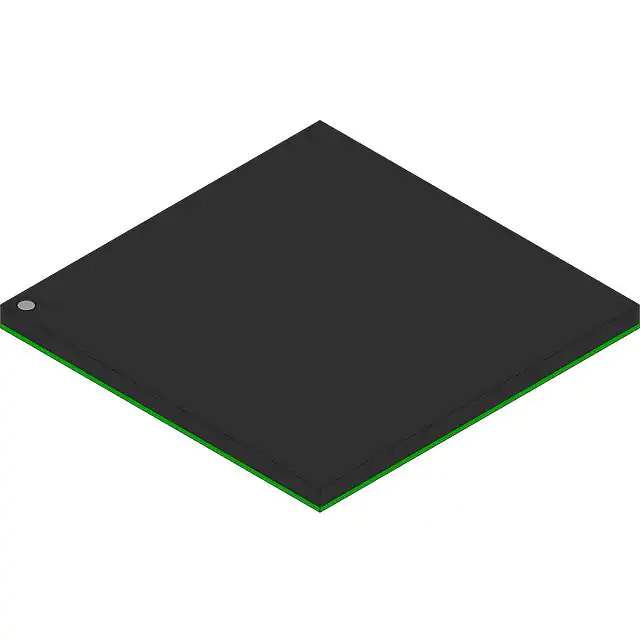

MPC860SRCZQ66D4 Real Image
Same model may have multiple batches, images only for reference.

MPC860SRCZQ66D4

Part No MPC860SRCZQ66D4
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microprocessors
Description IC MPU MPC8XX 66MHZ 357BGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microprocessors
Mfr Freescale Semiconductor - NXP
Series MPC8xx
Package Bulk
Product Status Active
Core Processor MPC8xx
Number of Cores/Bus Width 1 Core, 32-Bit
Speed 66MHz
Co-Processors/DSP Communications; CPM
RAM Controllers DRAM
Graphics Acceleration No
Ethernet 10Mbps (4)
Voltage - I/O 3.3V
Temperature Range - Operating -40°C ~ 95°C (TA)
Mounting Type Surface Mount
Package / Case 357-BBGA
Supplier Device Package 357-PBGA (25x25)
Additional Interfaces HDLC/SDLC, I2C, IrDA, PCMCIA, SPI, TDM, UART/USART
Base Product Number MPC86
Standard Package 2 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN 5A991B4B
HTSUS 8542.31.0001
Win Source Part Number 643763-MPC860SRCZQ66D4
Ultra Librarian 3D Model Ultra Librarian MPC860SRCZQ66D4 CAD Model

Description

The 643763-MPC860SRCZQ66D4 is a powerful microprocessor from the MPC8xx series by Freescale Semiconductor - NXP.

  • Core Processor: 32-bit
  • Operating Speed: 66MHz
  • Package: Surface mount
  • Temperature Range: -40°C to 95°C
  • Ethernet: 10Mbps
  • Interfaces: HDLC/SDLC, I2C, IrDA, PCMCIA, SPI, TDM, and UART/USART
  • Connectivity: Excellent connectivity options
  • Designed for: Applications that require communications and CPM co-processors
  • RAM Controllers: 4
  • Memory Support: Supports DRAM for efficient memory management
