Same model may have multiple batches, images only for reference.

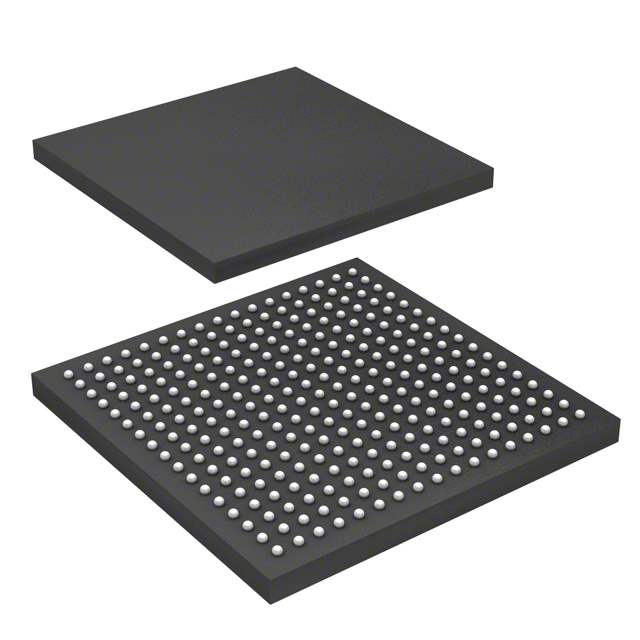

MCIMX6G1CVM05AA Real Image
Same model may have multiple batches, images only for reference.

MCIMX6G1CVM05AA

Part No MCIMX6G1CVM05AA
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microprocessors
Description IC MPU I.MX6UL 528MHZ 289MAPBGA / ARM? Cortex?-A7 Microprocessor IC i.MX6UL 1 Core, 32-Bit 528MHz 289-MAPBGA (14x14)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microprocessors
Mfr Freescale Semiconductor - NXP
Series i.MX6UL
Package Bulk
Product Status Obsolete
Core Processor ARM® Cortex®-A7
Number of Cores/Bus Width 1 Core, 32-Bit
Speed 528MHz
Co-Processors/DSP Multimedia; NEON™ SIMD
RAM Controllers LPDDR2, DDR3, DDR3L
Graphics Acceleration No
Display & Interface Controllers LVDS
Ethernet 10/100Mbps (1)
USB USB 2.0 + PHY (2)
Voltage - I/O 1.2V, 1.35V, 1.5V, 1.8V, 2.5V, 2.8V, 3.3V
Temperature Range - Operating -40°C ~ 105°C (TJ)
Security Features ARM TZ, A-HAB, CAAM, CSU, SJC, SNVS
Mounting Type Surface Mount
Package / Case 289-LFBGA
Supplier Device Package 289-MAPBGA (14x14)
Additional Interfaces CAN, EBI/EMI, I2C, I2S, MMC/SD/SDIO, QSPI, SAI, SPI, SSI, S/PDIF, UART
Base Product Number MCIMX6
Standard Package 1 pcs
HTSUS 0000.00.0000
Win Source Part Number 884008-MCIMX6G1CVM05AA
Ultra Librarian 3D Model Ultra Librarian MCIMX6G1CVM05AA CAD Model

Description

The MCIMX6G1CVM05AA is an embedded microprocessor from the i.MX6UL series by Freescale Semiconductor - NXP.

  • Core Processor: ARM Cortex-A7
  • Number of Cores: Single Core
  • Bus Width: 32-bit
  • Speed: 528MHz
  • Interfaces: CAN, EBI/EMI, I2C, I2S, MMC/SD/SDIO, QSPI, SAI, SPI, SSI, S/PDIF, and UART
  • I/O Voltage Range: 1.2V, 1.35V, 1.5V, 1.8V, 2.5V, 2.8V, 3.3V
  • Package Type: 289-LFBGA
  • Mounting Type: Surface Mountable
  • Product Status: Obsolete
