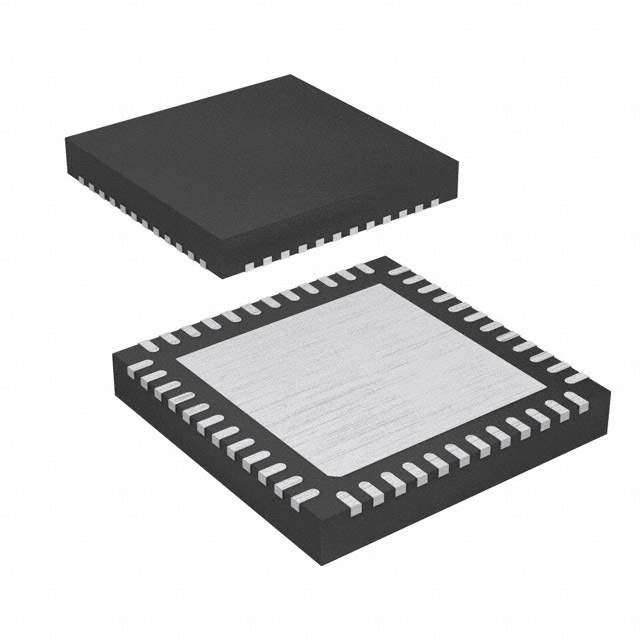

MC9S08JM16CGT Real Image
Same model may have multiple batches, images only for reference.

MC9S08JM16CGT

Part No MC9S08JM16CGT
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 16KB FLASH 48QFN
Datasheet
MC9S08JM16CGT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Status Active
Core Processor S08
Part Core Size 8-Bit
Speed(Frequency) 48MHz
Number of I/O 37
Program Memory Size 16KB (16K x 8)
Program Memory Type FLASH
Data RAM Size 1K x 8
Supply Voltage - Operating 2.7 V to 5.5 V
Data Converters A/D 8x12b
Oscillator Type External
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 48-QFN-EP (7x7)
Win Source Part Number 074753-MC9S08JM16CGT
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MC9S08JM16CGT CAD Model

Description

The NXP MC9S08JM16CGT is an 8-bit microcontroller that features a S08 core processor, 16KB (16K x 8) of FLASH program memory, and 1K x 8 of data RAM.

  • I/O Pins: 37
  • Oscillator Type: External
  • Frequency: Up to 48MHz
  • A/D Data Converter: 8x12b
  • Operating Temperature Range: -40°C to 85°C (TA)
  • Package: 48-QFN-EP (7x7)
  • Supply Voltage Range: 2.7 V to 5.5 V
