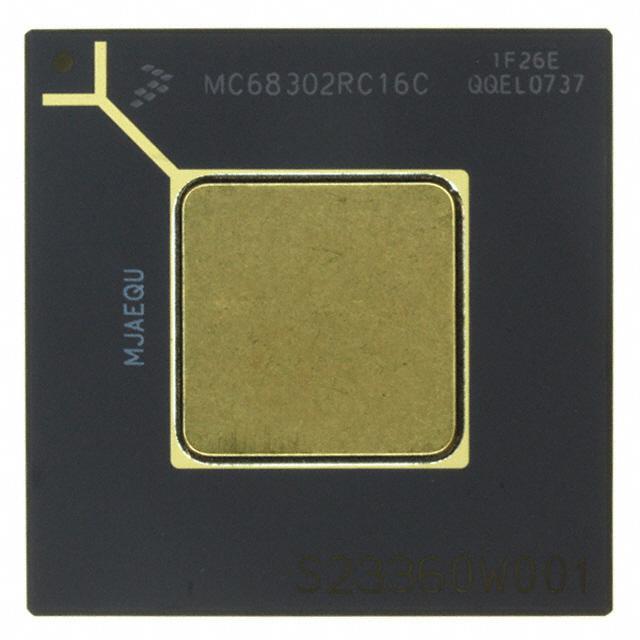

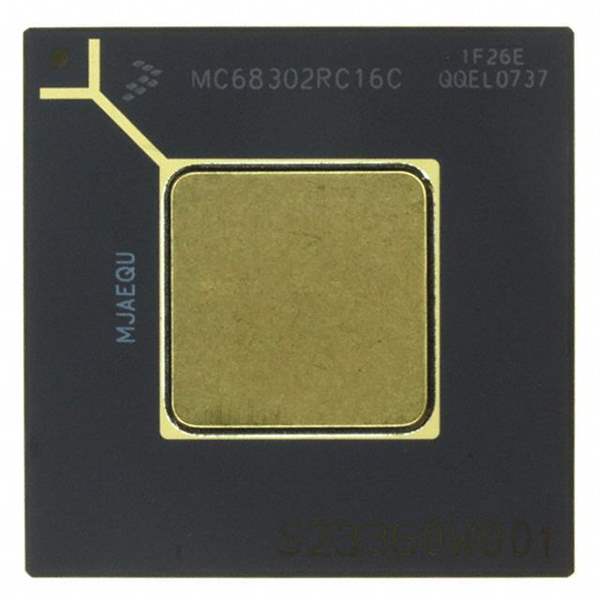

MC68302RC16C Freescale Semiconductor - NXP
Same model may have multiple batches, images only for reference.

MC68302RC16C

Part No MC68302RC16C
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microprocessors
Description IC MPU M683XX 16MHZ 132PGA
Datasheet
MC68302RC16C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Status Obsolete(EOL)
Core Processor M68000
Number of Cores/Bus Width 1 Core, 8/16-Bit
Speed(Frequency) 16MHz
Co-Processors/DSP Communications; RISC CPM
RAM Controllers DRAM
Graphics Acceleration No
Voltage - I/O 5.0V
Temperature Range - Operating 0°C to 70°C (TA)
Security Package / Case 132-BEPGA
Case / Package 132-PGA (34.5x34.5)
Additional Interfaces GCI, IDL, ISDN, NMSI, PCM, SCPI
Win Source Part Number 044462-MC68302RC16C
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MC68302RC16C CAD Model

Description

The NXP MC68302RC16C is an integrated circuit that is designed to operate within a temperature range of 0°C to 70°C.

  • Operating Temperature: 0°C to 70°C
  • Mounting Type: Surface Mount
  • Package / Case: 132-PGA (34.5x34.5)
  • Voltage - I/O: 5.0V
  • Core Processor: M68000
  • Number of Cores/Bus Width: 1 core, 8/16-bit
  • Co-processors/DSP: communications; RISC CPM
  • RAM Controllers: DRAM
  • Additional Interfaces: GCI, IDL, ISDN, NMSI, PCM, and SCPI
  • Lifecycle Status: Obsolete (EOL)
  • Popularity: Medium
