Same model may have multiple batches, images only for reference.

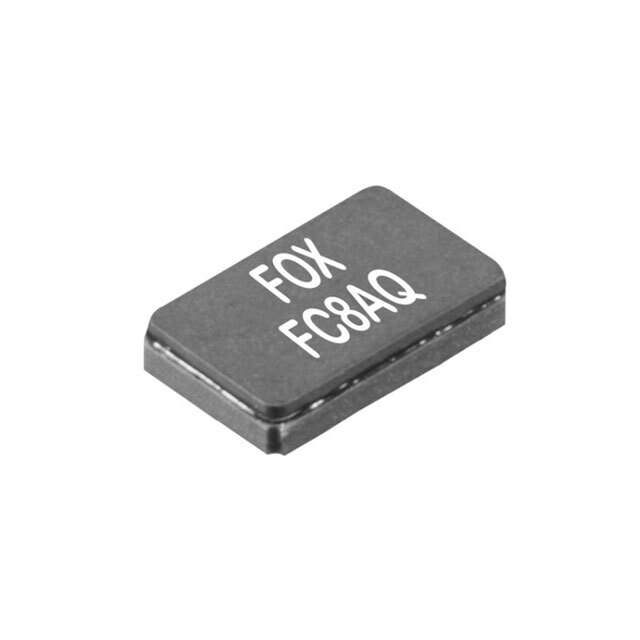

FC8AQCCMM4.0-T1 Real Image
Same model may have multiple batches, images only for reference.

FC8AQCCMM4.0-T1

Part No FC8AQCCMM4.0-T1
Manufacturer Fox Electronics
Catalog Crystals
Description CRYSTAL 4.0000MHZ 20PF SMD / 4 MHz ±30ppm Crystal 20pF 150 Ohms 2-SMD, No Lead
Datasheet
FC8AQCCMM4.0-T1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Fox Electronics
Series FC8AQ
Package Tape & Reel
Product Status Obsolete
Type MHz Crystal
Frequency 4 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 150 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.394" L x 0.177" W (10.00mm x 4.50mm)
Height - Seated (Max) 0.067" (1.70mm)
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0030
California Prop 65 Warning Information
Win Source Part Number 1339890-FC8AQCCMM4.0-T1
Ultra Librarian 3D Model Ultra Librarian FC8AQCCMM4.0-T1 CAD Model

Description

The Fox Electronics 1339890-FC8AQCCMM4.0-T1 is a 4 MHz crystal with a frequency stability of ±30ppm.

  • Frequency: 4 MHz
  • Frequency Stability: ±30ppm
  • ESR: 150 Ohms
  • Load Capacitance: 20pF
  • Operating Mode: Fundamental
  • Mounting Type: Surface Mount
  • Package / Case: 2-SMD, No Lead
  • Standard Package: 1,000
  • Operating Temperature: -40°C to 85°C
