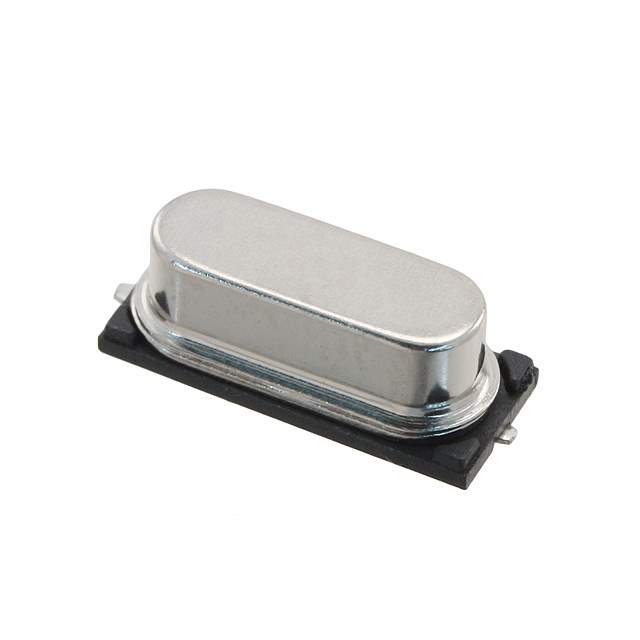

FC4SDCBMF3.6864-T1 Real Image
Same model may have multiple batches, images only for reference.

FC4SDCBMF3.6864-T1

Part No FC4SDCBMF3.6864-T1
Manufacturer Fox Electronics
Catalog Oscillators
Description CRYSTAL 3.6864MHZ 20PF SMD / 3.6864 MHz ±30ppm Crystal 20pF 200 Ohms HC-49/US
Datasheet
FC4SDCBMF3.6864-T1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Manufacturer Fox Electronics
Packaging Reel - TR
Type MHz Crystal
Frequency 3.6864 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 200 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Surface Mount
Case / Package HC-49/US
Size / Dimension 0.461" L x 0.197" W (11.70mm x 5.00mm)
Height - Seated (Max) 0.177" (4.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0030
Other Part Number FOXSDLF/0368-20,FOXSDLF036820,FOXSDLF/0368-20/TR,631-1004-1,631-1004-2,FC4SDCBMF3.6864,631-1004-6
Standard Package 1,000
Win Source Part Number 1328322-FC4SDCBMF3.6864-T1
Ultra Librarian 3D Model Ultra Librarian FC4SDCBMF3.6864-T1 CAD Model

Description

The Fox Electronics MHz Crystal is a high-quality electronic component that comes in a compact size of 0.461" L x 0.197" W (11.70mm x 5.00mm).

  • Frequency: 3.6864 MHz
  • ESR (Equivalent Series Resistance): 200 Ohms
  • Frequency Stability: ±50ppm
  • Mounting Type: Surface Mount
  • Load Capacitance: 20pF
  • Mode: Fundamental
  • Temperature Range: -20°C ~ 70°C
  • Case/Package: HC-49/US
