Same model may have multiple batches, images only for reference.

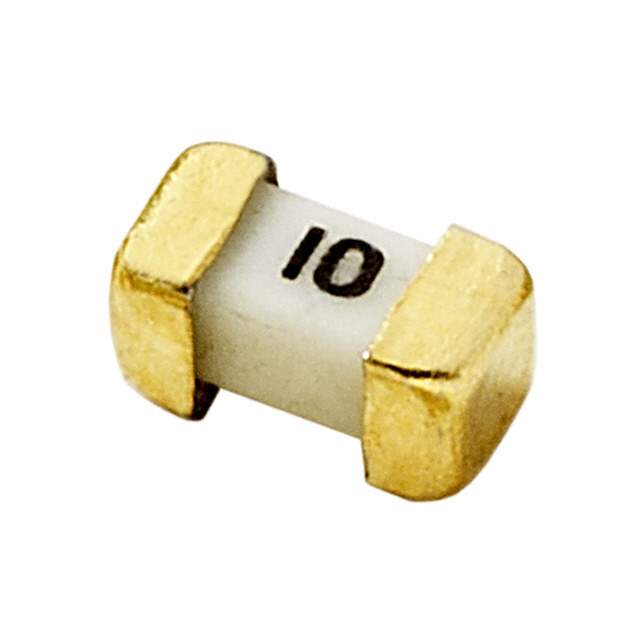

045802.5DR Real Image
Same model may have multiple batches, images only for reference.

045802.5DR

Part No 045802.5DR
Manufacturer Littelfuse Inc.
Catalog Fuses
Description Surface Mount Fuses | FUSE BOARD MNT 2.5A 48VAC 75VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 2.5A
Voltage Rating - AC 48V
Voltage Rating - DC 75V
Response Time Fast Blow
Manufacturer Package 1206
Mounting Style SMD
Breaking Capacity at Rated Voltage 50A
Melting I2t 1.408
Approvals cULus
Temperature Range - Operating -55°C ~ 125°C
Parts Dimension 0.125" L x 0.062" W x 0.062" H (3.18mm x 1.58mm x 1.58mm)
DC Cold Resistance 0.06 Ohms
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1120659-045802.5DR
Manufacturer Homepage www.littelfuse.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 045802.5DR CAD Model

Description

The Littelfuse Inc. board mount fuse is designed for general-purpose circuit protection. The Littelfuse Inc. board mount fuse is ideal for use in applications that require protection against overcurrent and short-circuit events, such as power supplies, motor drives, and lighting systems.

  • Voltage Rating: 48V AC and 75V DC
  • Current Rating: 2.5A
  • Type: fast-blow
  • DC Cold Resistance: 0.06 Ohms
  • Package: 1206
  • Operating Temperature Range: -55°C to 125°C
  • Approval: cULus
