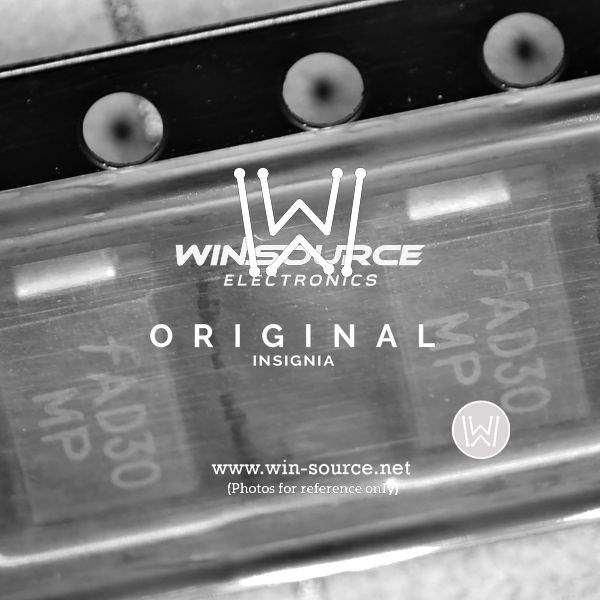

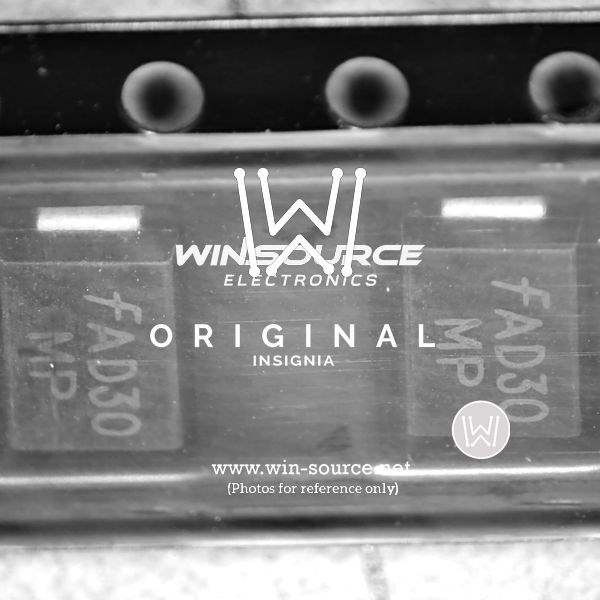

Same model may have multiple batches, images only for reference.

SMBJ36CA

Name: SMBJ36CA
Brand: Fairchild/ON Semiconductor
SKU: 328063
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SMBJ36CA
Manufacturer	Fairchild/ON Semiconductor
Catalog	TVS - Diodes
Description	TVS DIODE 36VWM 58.1VC SMB
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Fairchild/ON Semiconductor
Packaging	Reel - TR
Status	Active
Type	Zener
Bidirectional Channels	1
STAND-OFF Voltage (Vwm)	36V
Minimum Breakdown Voltage	40V
Max Clamping Voltage	58.1V
Peak Pulse Current(Ippm)	10.3A
Power Dissipation - Pd	600W
Applications	General Purpose
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	DO-214AA (SMB)
Win Source Part Number	094662-SMBJ36CA
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Application Field	Used in Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Industrial
Family Name	SMBJ36CA
Introduction Date	May 10, 2000
ECCN	EAR99
Country of Origin	China, Taiwan
Estimated EOL Date	2024
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
Voltage - Reverse Standoff (Typ)	36V
Voltage - Breakdown (Min)	40V
Voltage - Clamping (Max) @ Ipp	58.1V
Current - Peak Pulse (10/1000µs)	10.4A
Power - Peak Pulse	600W
Power Line Protection	No
Operating Temperature	-55°C ~ 150°C (TJ)
Grade	-
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB
Supplier Device Package	DO-214AA (SMB)
Operating Temperature	-65°C ~ 150°C (TJ)
Supplier Device Package	DO-214AA (SMBJ)
Package	Tape & Reel (TR)
Ultra Librarian 3D Model	Ultra Librarian SMBJ36CA CAD Model

Description

The Fairchild/ON Semiconductor Zener Diode is a bidirectional channel diode with a STAND-OFF voltage of 36V and a minimum breakdown voltage of 40V.

Max Clamping Voltage: 58.1V
Peak Pulse Current: 10.3A
Package: DO-214AA (SMB) package
Applications: commonly used in computers and computer peripherals, communications and networking, consumer electronics, and industrial applications
Popularity: high
Supply and Demand Status: sufficient
Status: active
Estimated EOL date: 2024
