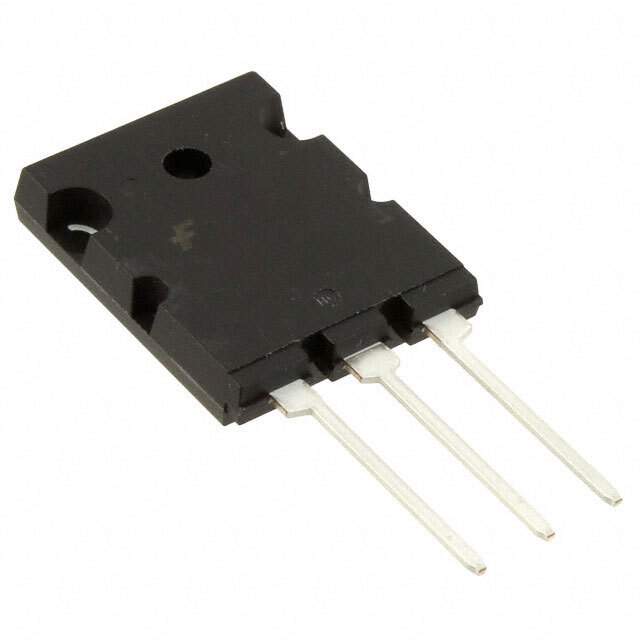

SGL160N60UFDTU Real Image
Same model may have multiple batches, images only for reference.

SGL160N60UFDTU

Part No SGL160N60UFDTU
Manufacturer Fairchild/ON Semiconductor
Catalog IGBTs - Single
Description IGBT 600V 160A 250W TO264
Datasheet
SGL160N60UFDTU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube
Voltage - Collector Emitter Breakdown (Maximum) 600V
Current - Collector (Ic) (Maximum) 160A
Current - Collector Pulsed (Icm) 300A
Vce(on) (Maximum) @ Vge, Ic 2.6V @ 15V, 80A
Power - Max 250W
Switching Energy 2.5mJ (on), 1.76mJ (off)
Input Type Standard
Gate Charge 345nC
Td (on/off) @ 25°C 40ns/90ns
Test Condition 300V, 80A, 3.9 Ohm, 15V
Reverse Recovery Time (trr) 95ns
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package TO-264-3, TO-264AA
Manufacturer Package TO-264
Manufacturer Homepage www.fairchildsemi.com
Win Source Part Number 749183-SGL160N60UFDTU
Family Name SGL160N60UFD
Introduction Date October 16, 2000
ECCN EAR99
Country of Origin China, Republic of Korea
Halogen Free Compliant
Estimated EOL Date 2019
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 375
Ultra Librarian 3D Model Ultra Librarian SGL160N60UFDTU CAD Model

Description

The SGL160N60UFDTU is a high-performance MOSFET manufactured by Fairchild/ON Semiconductor.

  • Maximum Power Output: 250W
  • Collector Current: 160A
  • Voltage Breakdown: 600V
  • Reverse Recovery Time: 95ns
  • Gate Charge: 345nC
  • Switching Energy (on): 2.5mJ
  • Switching Energy (off): 1.76mJ
  • Operating Temperature Range: -55°C to 150°C (TJ)
  • Package: TO-264-3, TO-264AA
  • Supply and Demand Status: Limited
