Same model may have multiple batches, images only for reference.

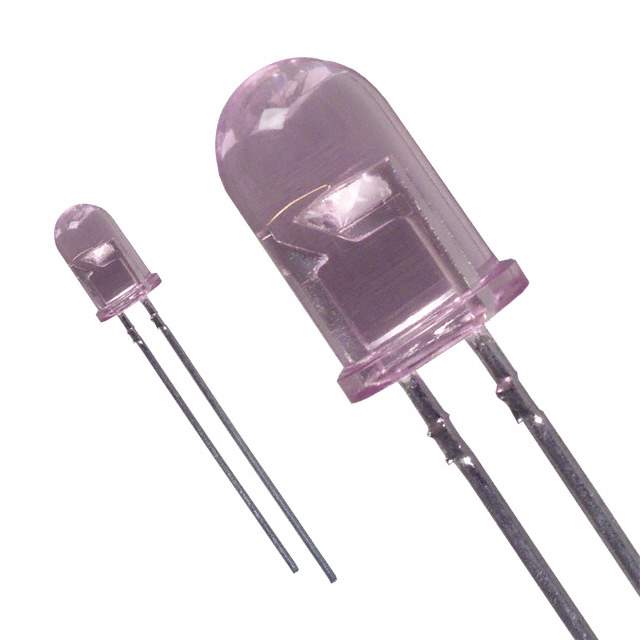

QED223 Real Image
Same model may have multiple batches, images only for reference.

QED223

Part No QED223
Manufacturer Fairchild/ON Semiconductor
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 880NM 100MA RADIAL
Datasheet
QED223 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Fairchild/ON Semiconductor
Packaging Bulk
Status Active
Type Infrared (IR)
Continuous forward current- Max 100mA
Radiant Intensity (Ie) Min @ If 25mW/sr @ 100mA
Wavelength 880nm
Forward Voltage 1.7V
Viewing Angle 30°
Orientation Top View
Temperature Range - Operating -40°C to 100°C (TA)
Mounting Through Hole
Dimension Radial
Win Source Part Number 102249-QED223
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial, Signal Processing, LED Lighting
Ultra Librarian 3D Model Ultra Librarian QED223 CAD Model

Description

The Fairchild/ON Semiconductor 102249-QED223 is an infrared (IR) LED that is used in various electronic circuits.

  • Manufacturer: Fairchild/ON Semiconductor
  • Mounting Type: Through hole
  • Package Type: Bulk
  • Forward Voltage: 1.7V
  • Viewing Angle: 30°
  • Wavelength: 880nm
  • Radiant Intensity (Ie) Min @ If: 25mW/sr @ 100mA
  • Category: Optoelectronic product
  • Status: Active
  • Applications: Industrial, signal processing, and LED lighting
