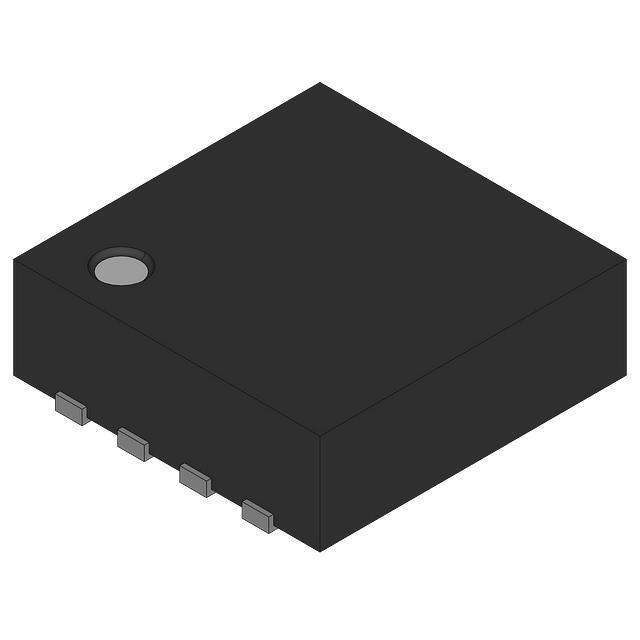

NC7WP00L8X Real Image
Same model may have multiple batches, images only for reference.

NC7WP00L8X

Part No NC7WP00L8X
Manufacturer Fairchild/ON Semiconductor
Catalog Logic - Gates and Inverters
Description TinyLogic ULP Dual 2-Input NAND Gate
Datasheet
NC7WP00L8X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Fairchild/ON Semiconductor
Series 7WP
Packaging Reel - TR
Logic Type NAND Gate
Number of Circuits 2
Number of Inputs 2
Operating Supply Voltage 0.9 V ~ 3.6 V
Maximum Quiescent Current 0.9μA
Current - Output High, Low 2.6mA, 2.6mA
Logic Level - Low 0.7 V ~ 0.9 V
Logic Level - High 1.6 V ~ 2 V
Max Propagation Delay @ V, Max CL 7ns @ 3.3V, 30pF
Operating Temperature Range -40°C ~ 85°C
Mounting SMD
Manufacturer Package 8-MicroPak
Package 8-UFQFN
Win Source Part Number 1229588-NC7WP00L8X
Manufacturer Homepage www.fairchildsemi.com
Popularity Medium
Supply and Demand Status Limited
Quantity per package 5k pcs
Family Name NC7WP00
Introduction Date February 03, 2003
ECCN EAR99
Country of Origin Thailand
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian NC7WP00L8X CAD Model

Description

The NC7WP00L8X is a NAND gate integrated circuit manufactured by Fairchild/ON Semiconductor.

  • Series: 7WP
  • Package: 8-UFQFN
  • Operating Voltage: 0.9 V to 3.6 V
  • Propagation Delay: 7 ns @ 3.3 V and 30 pF
  • Popularity: Medium
  • Supply and Demand: Limited
