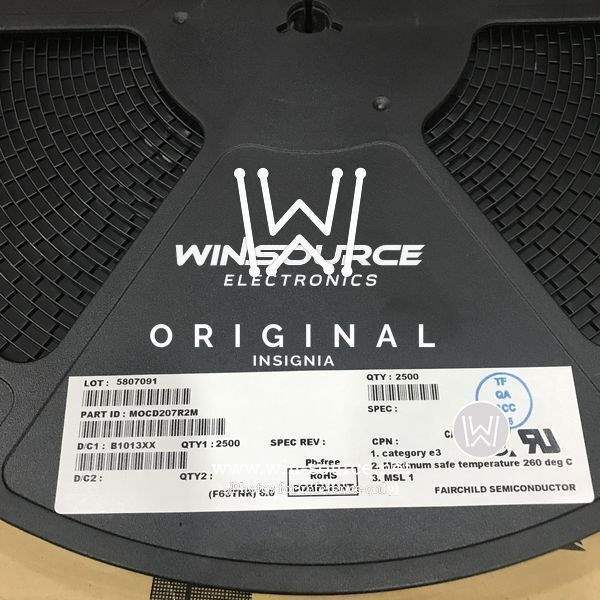

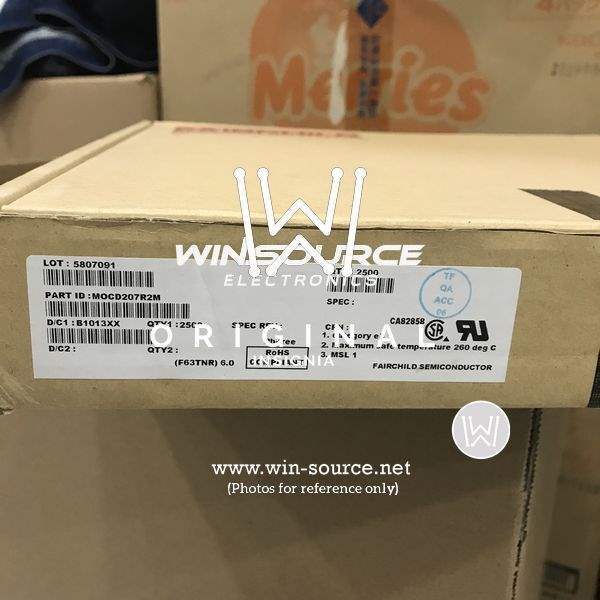

MOCD207R2M Fairchild/ON Semiconductor MOCD207R2M Real Image MOCD207R2M label picture MOCD207R2M label picture 2
Same model may have multiple batches, images only for reference.
MOCD207R2M Fairchild/ON Semiconductor MOCD207R2M Real Image MOCD207R2M label picture MOCD207R2M label picture 2
MOCD207R2M Fairchild/ON Semiconductor MOCD207R2M Real Image MOCD207R2M label picture MOCD207R2M label picture 2
Same model may have multiple batches, images only for reference.

MOCD207R2M

Part No MOCD207R2M
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 2.5KV 2CH TRANS 8SOIC
Datasheet
MOCD207R2M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Number of Channels 2
Isolation Voltage 2500Vrms
Minimum DC Current Transfer Ratio 100% @ 10mA
Maximum DC Current Transfer Ratio 200% @ 10mA
Switching Turn-On and Turn-Off Time 7.5μs, 5.7μs
Rise and Fall Time 3.2μs, 4.7μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 70V
Channel Output Current 150mA
Forward Voltage 1.25V
Continuous forward current- Max 60mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -40°C to 100°C
Mounting SMD (SMT)
Case / Package 8-SO Tall
Win Source Part Number 024201-MOCD207R2M
Family Name MOCD207M
Introduction Date December 21, 2001
ECCN EAR99
Country of Origin China, Malaysia, Philippines, Taiwan, Thailand
Halogen Free Compliant
Estimated EOL Date 2025
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian MOCD207R2M CAD Model

Description

The Fairchild/ON Semiconductor MOCD207R2M is a two-channel optocoupler designed for high-speed, high-density applications.

  • Forward Voltage: 1.25V
  • Suitable for: DC input applications
  • Maximum Output Voltage: 70V
  • Minimum DC Current Transfer Ratio: 100% @ 10mA
  • Maximum DC Current Transfer Ratio: 200% @ 10mA
  • Switching Turn-On Time: 7.5μs
  • Switching Turn-Off Time: 5.7μs
  • Rise Time: 3.2μs
  • Fall Time: 4.7μs
  • Isolation Voltage: 2500Vrms
  • Package: 8-SO Tall
  • Halogen-Free: Compliant
  • Reel Quantity: 2500 units
