Same model may have multiple batches, images only for reference.

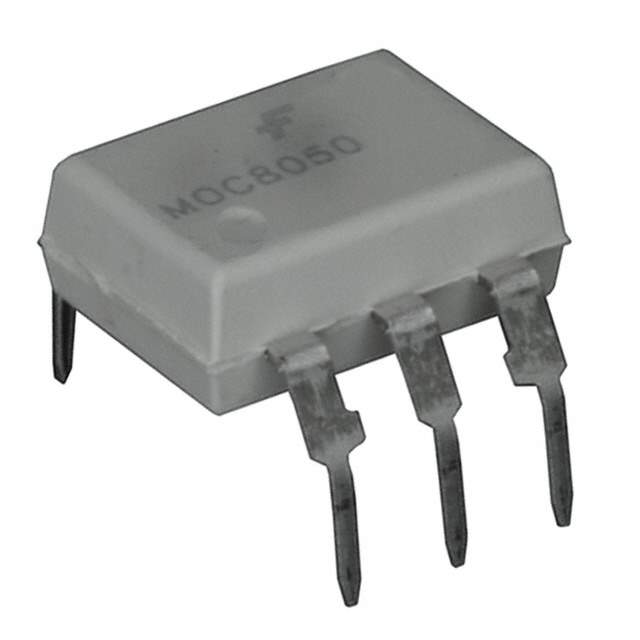

MOC8050TVM Real Image
Same model may have multiple batches, images only for reference.

MOC8050TVM

Part No MOC8050TVM
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 4.17KV DARLINGTON 6DIP / Optocoupler DC-IN 1-CH Darlington DC-OUT 6-Pin PDIP White Bag
Datasheet
MOC8050TVM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Tube
Number of Channels 1
Voltage - Isolation 4170Vrms
Current Transfer Ratio (Minimum) 500% @ 10mA
Turn On / Turn Off Time (Typ) 8.5μs, 95μs
Input Type DC
Output Type Darlington
Output Voltage MAX 80V
Output Current per Channel 150mA
Voltage - Forward (Vf) (Typ) 1.18V
Current - DC Forward (If) (Maximum) 60mA
Operating Temperature Range -40°C ~ 100°C
Mounting Style Through Hole
Package 6-DIP (0.400", 10.16mm)
Manufacturer Package 6-DIP
Win Source Part Number 789080-MOC8050TVM
Popularity Medium
Supply and Demand Status Balance
Family Name MOC8050M
Introduction Date November 01, 2007
ECCN EAR99
Country of Origin Thailand
Halogen Free Not Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian MOC8050TVM CAD Model

Description

This electronic component is a Fairchild/ON Semiconductor isolator.

  • Win Source Part Number: 789080-MOC8050TVM
  • Package: 6-DIP (0.400", 10.16mm)
  • Output Voltage Max: 80V
  • Output Current per Channel: 150mA
  • Current DC forward (If) (maximum): 60mA
  • Current Transfer Ratio (minimum): 500% @ 10mA
  • Turn on/turn off time (typ): 8.5μs, 95μs
  • Supply and Demand Status: Balance
