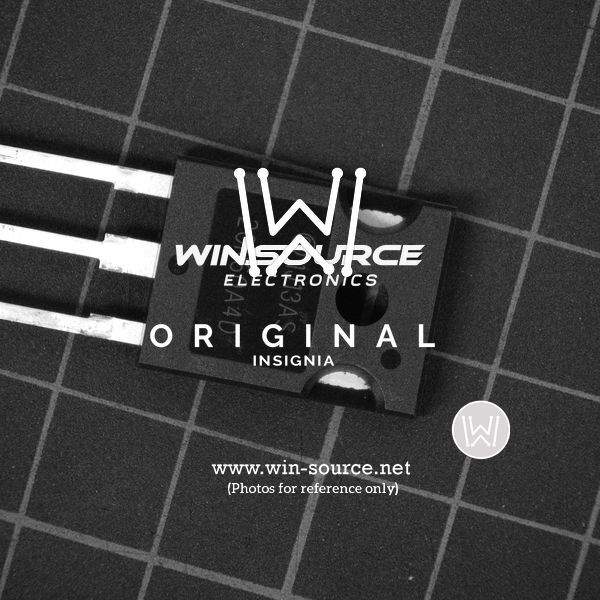

HGTP20N60A4 Real Image HGTP20N60A4 real image15502
Same model may have multiple batches, images only for reference.
HGTP20N60A4 Real Image HGTP20N60A4 real image15502
HGTP20N60A4 Real Image HGTP20N60A4 real image15502
Same model may have multiple batches, images only for reference.

HGTP20N60A4

Part No HGTP20N60A4
Manufacturer Fairchild/ON Semiconductor
Catalog IGBTs - Single
Description Trans IGBT Chip N-CH 600V 70A 290000mW 3-Pin(3+Tab) TO-220 Tube / IGBT 600V 70A 290W TO220AB
Datasheet
HGTP20N60A4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Not For New Designs
VCEO Maximum Collector-Emitter Breakdown Voltage 600V
Maximum Current Collector 70A
Pulsed Collector Current 280A
Collector-emitter saturation voltage(Max) 2.7V @ 15V, 20A
Maximum Power Dissipation 290W
Total Switching Energy(Ets) 105μJ (on), 150μJ (off)
Input Type Standard
Gate Charge 142nC
Turn-on and Turn-off delay time 15ns/73ns
Testing Conditions 390V, 20A, 3 Ohm, 15V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-220AB
Win Source Part Number 1043310-HGTP20N60A4
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name HGTP20N60A4
Introduction Date January 08, 2002
ECCN EAR99
Country of Origin China
Halogen Free Not Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian HGTP20N60A4 CAD Model

Description

The 1043310-HGTP20N60A4 is a TO-220AB packaged IGBT type product with a maximum current collector of 70A and a VCEO maximum collector-emitter breakdown voltage of 600V. Fairchild/ON Semiconductor.

  • Collector-Emitter Saturation Voltage (Max): 2.7V @ 15V, 20A
  • Gate Charge: 142nC
  • Maximum Power Dissipation: 290W
  • Operating Temperature: -55°C to 150°C (TJ)
  • Mounting: through hole
  • Packaging: tube/rail
  • Total Switching Energy (Ets): 105μJ (on), 150μJ (off)
  • Turn-On Delay Time: 15ns
  • Turn-Off Delay Time: 73ns
  • Halogen-Free Compliance: not compliant
  • Estimated EOL Date: 2022
  • Supply: 1k pcs
