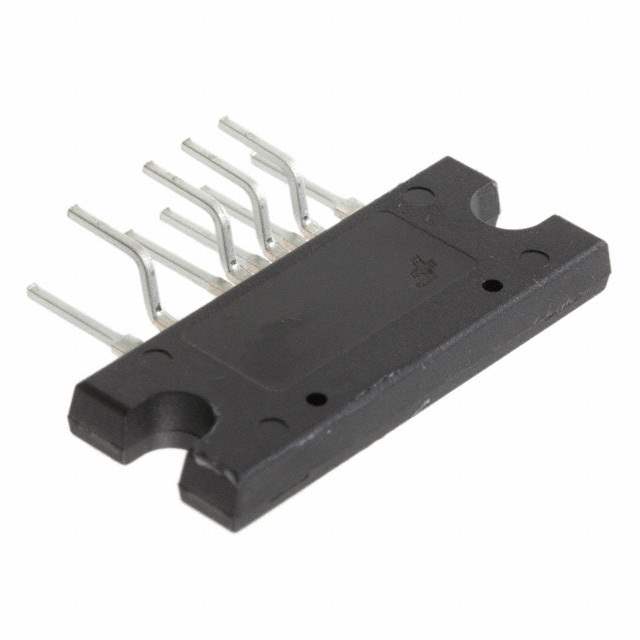

FSFR1800HS Real Image
Same model may have multiple batches, images only for reference.

FSFR1800HS

Part No FSFR1800HS
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC FPS HALF BRIDGE RES CONV 9SIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 500V
Topology Half-Bridge
Voltage - Start Up 12.5V
Supply Voltage - Operating 10 V to 25 V
Duty Cycle 50%
Frequency - Switching Up to 600kHz
Power (Watts) 260W
Fault Protection Current Limiting, Over Temperature, Over Voltage
Control Features Frequency Control
Temperature Range - Operating -40°C to 130°C (TJ)
Case / Package 9-SIP
Mounting Through Hole
Win Source Part Number 141449-FSFR1800HS
Popularity Medium
Supply and Demand Status Limited
Quantity per package 475
Ultra Librarian 3D Model Ultra Librarian FSFR1800HS CAD Model

Description

The Fairchild/ON Semiconductor FSFR1800HS is a half-bridge integrated circuit that has an output isolation and internal switch. It is designed to operate in a temperature range of -40°C to 130°C and has a power rating of 260W.

  • Output Isolation: Isolated
  • Internal Switch: Yes
  • Temperature Range: -40°C to 130°C
  • Power Rating: 260W
  • Control: Frequency Control
  • Duty Cycle: 50%
  • Voltage Breakdown: 500V
  • Startup Voltage: 12.5V
  • Frequency Switching: Up to 600kHz
  • Package: Tube/Rail
  • Operating Voltage: 10V to 25V
