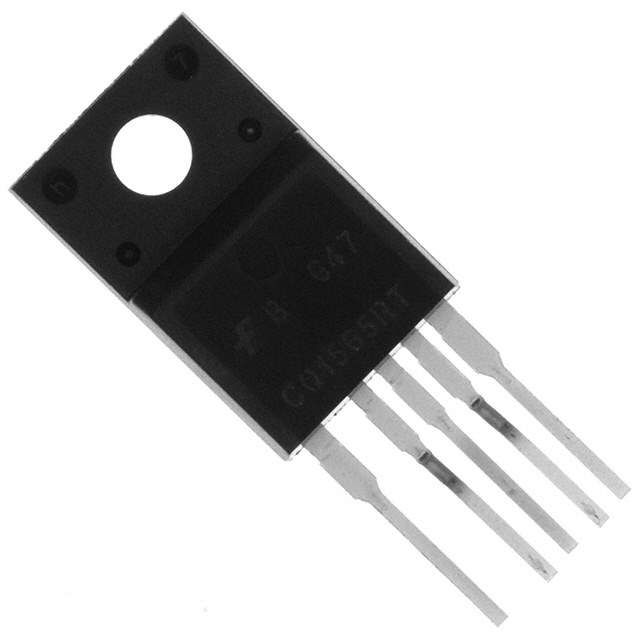

FSCQ1565RTYDTU

Part No FSCQ1565RTYDTU
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC SWIT PWM GREEN OVP HV TO220
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 650V
Topology Flyback
Voltage - Start Up 15V
Supply Voltage - Operating 9 V to 20 V
Duty Cycle 95%
Frequency - Switching 20kHz
Power (Watts) 210W
Fault Protection Current Limiting, Over Load, Over Temperature, Over Voltage
Control Features Sync
Temperature Range - Operating -25°C to 85°C (TA)
Case / Package TO-220F-5L (Forming)
Mounting Through Hole
Win Source Part Number 040360-FSCQ1565RTYDTU
Popularity Medium
Supply and Demand Status Limited
Quantity per package 400
Ultra Librarian 3D Model Ultra Librarian FSCQ1565RTYDTU CAD Model

Description

The FSCQ1565RTYDTU is a flyback topology integrated circuit from Fairchild/ON Semiconductor with a limited supply and demand status.

  • Topology: Flyback
  • Output Isolation: Isolated
  • Internal Switch: Yes
  • Power Rating: 210W
  • Voltage Breakdown: 650V
  • Voltage Start-up: 15V
  • Duty Cycle: 95%
  • Switching Frequency: 20kHz
  • Fault Protection: Current Limiting, Over Load, Over Temperature, Over Voltage
  • Control Feature: Sync
  • Package Type: TO-220F-5L (Forming)
  • Mounting: Through Hole
  • Package Quantity: 400
