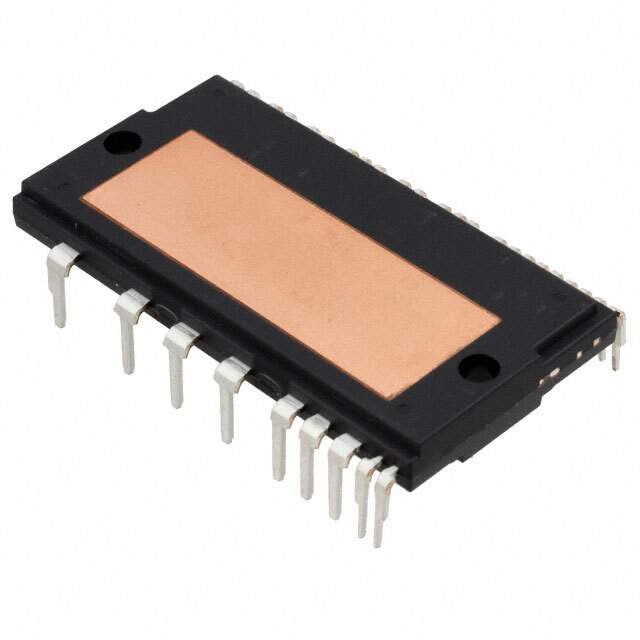

FPAM30LH60 Real Image
Same model may have multiple batches, images only for reference.

FPAM30LH60

Part No FPAM30LH60
Manufacturer Fairchild/ON Semiconductor
Catalog Power Drivers - Modules
Description MODULE SPM 600V 30A S32EA / IPM IGBT 600V 30A 32-Pin SPM32-EA Tube
Datasheet
FPAM30LH60 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Series PFC SPM 2
Type IGBT
Configuration 2 Phase
Current 30A
Voltage 600V
Voltage - Isolation 2500Vrms
Package 32-PowerDIP Module (1.370", 34.80mm)
Win Source Part Number 774701-FPAM30LH60
Popularity Medium
Supply and Demand Status Limited
Quantity per package 48
Family Name FPAM30LH60
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian FPAM30LH60 CAD Model

Description

Fairchild/ON Semiconductor's FPAM30LH60 is a 2-phase IGBT module.

  • Series: PFC SPM 2
  • Voltage: 600V
  • Current: 30A
  • Package: 32-PowerDIP Module (1.370", 34.80mm)
  • Voltage Isolation: 2500Vrms
  • Halogen-Free: Compliant
  • EOL Date: 2030 (estimated)
  • Supply: Limited
