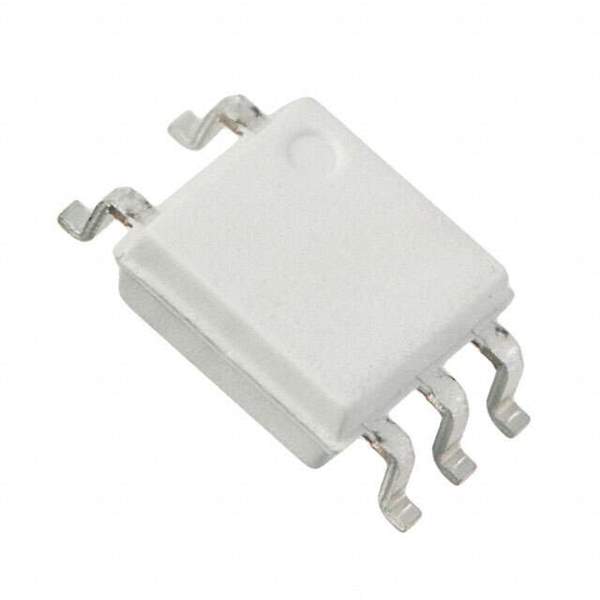

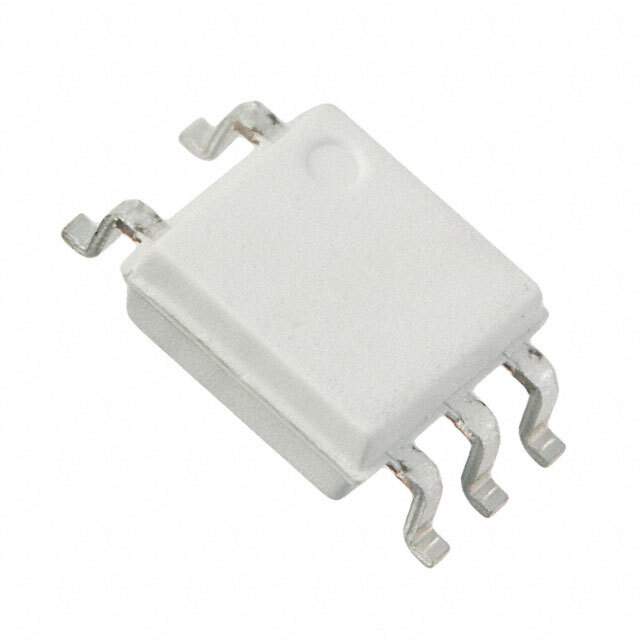

FODM8071R2 Real Image
Same model may have multiple batches, images only for reference.

FODM8071R2

Part No FODM8071R2
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Logic Output
Description OPTOISO 3.75KV PUSH PULL 5MFP
Datasheet
FODM8071R2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Isolation Voltage 3750Vrms
Common Mode Transient Immunity (Min) 20kV/μs
Input Type DC
Output Type Push-Pull, Totem Pole
Channel Output Current 10mA
Data Rate 20Mbps
Propagation Delay tpLH / tpHL (Max) 55ns, 55ns
Rise and Fall Time 5.8ns, 5.3ns
Forward Voltage 1.35V
Continuous forward current- Max 20mA
Supply Voltage - Operating 3 V to 5.5 V
Temperature Range - Operating -40°C to 110°C
Mounting SMD (SMT)
Case / Package 5-Mini-Flat
Win Source Part Number 1039452-FODM8071R2
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian FODM8071R2 CAD Model

Description

The FODM8071R2 is a high-speed optocoupler manufactured by Fairchild/ON Semiconductor.

  • Package: 5-Mini-Flat
  • Data Rate: 20Mbps
  • Output Type: push-pull, totem pole
  • Input Type: DC
  • Common Mode Transient Immunity: 20kV/μs
  • Propagation Delay: 55ns, 55ns (tpLH/tpHL max)
  • Isolation Voltage: 3750Vrms
  • Temperature Range: -40°C to 110°C
  • Channel Output Current: 10mA
  • Continuous Forward Current: 20mA
