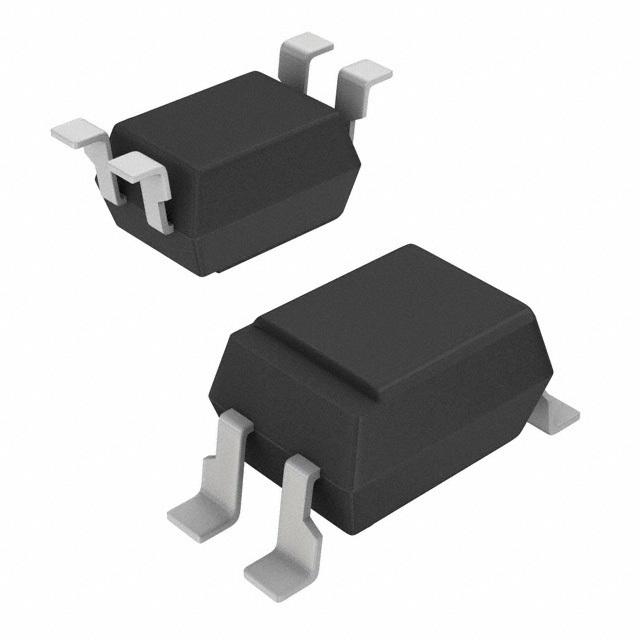

FOD815SD Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

FOD815SD

Part No FOD815SD
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 5KV DARLINGTON 4SMD
Datasheet
FOD815SD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 600% @ 1mA
Maximum DC Current Transfer Ratio 7500% @ 1mA
Rise and Fall Time 60μs, 53μs
Input Type DC
Output Type Darlington
Maximum Output Voltage 35V
Channel Output Current 80mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 1V
Temperature Range - Operating -30°C to 105°C
Mounting SMD (SMT)
Case / Package 4-SMD
Win Source Part Number 1039375-FOD815SD
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FOD815SD CAD Model

Description

The FOD815SD optocoupler is an isolated Darlington transistor output type optocoupler with a maximum output voltage of 35V and a channel output current of 80mA from Fairchild/ON Semiconductor.

  • Part: FOD815SD
  • Manufacturer: Fairchild/ON Semiconductor
  • Type: Isolated Darlington Transistor Output Optocoupler
  • Output Voltage (Max): 35V
  • Channel Output Current: 80mA
  • DC Current Transfer Ratio (Min): 600% @ 1mA
  • DC Current Transfer Ratio (Max): 7500% @ 1mA
  • Package: 4-SMD
  • Mounting: Surface Mountable
  • Continuous Forward Current: 50mA
  • Vce Saturation (Max): 1V
  • Isolation Voltage: 5000Vrms
  • Operating Temperature: -30°C to 105°C
  • Status: Obsolete (EOL)
