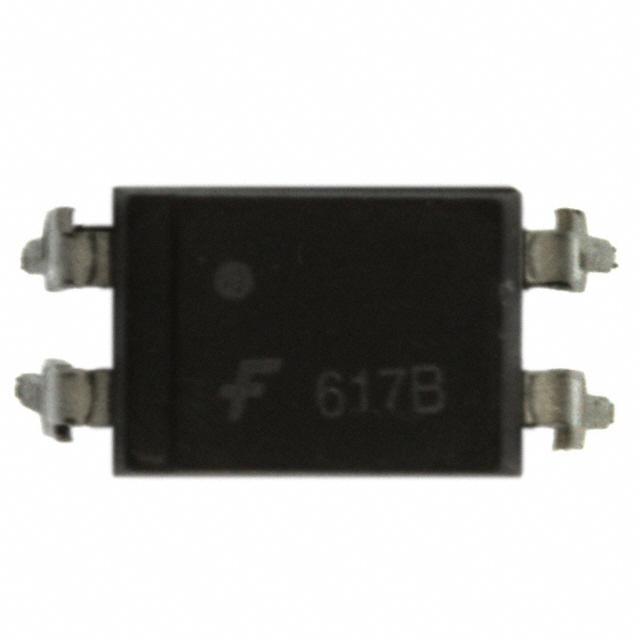

FOD617BSD Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

FOD617BSD

Part No FOD617BSD
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 5KV TRANSISTOR 4SMD
Datasheet
FOD617BSD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 63% @ 10mA
Maximum DC Current Transfer Ratio 125% @ 10mA
Rise and Fall Time 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 70V
Channel Output Current 50mA
Forward Voltage 1.35V
Continuous forward current- Max 50mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -55°C to 110°C
Mounting SMD (SMT)
Case / Package 4-SMD
Win Source Part Number 1039365-FOD617BSD
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian FOD617BSD CAD Model

Description

The FOD617BSD is a transistor output optocoupler from Fairchild/ON Semiconductor, which is designed for use in applications that require high voltage isolation between input and output.

  • Package: 4-SMD
  • Temperature Range: -55°C to 110°C
  • Minimum DC Current Transfer Ratio: 63% @ 10mA
  • Maximum DC Current Transfer Ratio: 125% @ 10mA
  • Maximum Output Voltage: 70V
  • Channel Output Current: 50mA
  • Switching Turn-On/Off Time: Not specified
  • Rise Time: 4μs
  • Fall Time: 3μs
  • Forward Voltage: 1.35V
  • Vce Saturation (max): 400mV
  • Isolation Voltage: 5000Vrms
