Same model may have multiple batches, images only for reference.

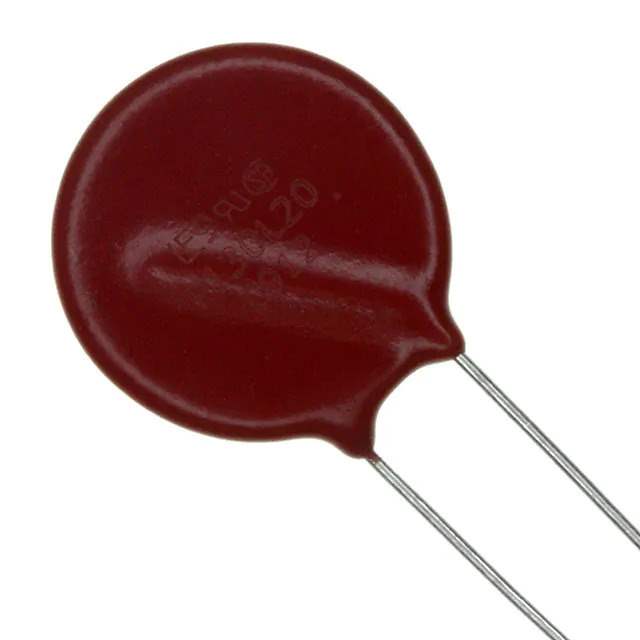

V36ZA80 Real Image
Same model may have multiple batches, images only for reference.

V36ZA80

Part No V36ZA80
Manufacturer Littelfuse Inc.
Catalog TVS - Varistors, MOVs
Description VARISTOR 36V 2KA DISC 20MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Varistors, MOVs
Mfr Littelfuse Inc.
Series ZA
Package Bulk
Product Status Obsolete
Maximum AC Volts 23 V
Maximum DC Volts 28 V
Varistor Voltage (Min) 32.4 V
Varistor Voltage (Typ) 36 V
Varistor Voltage (Max) 39.6 V
Current - Surge 2 kA
Energy 160J
Number of Circuits 1
Capacitance @ Frequency 12000 pF @ 1 MHz
Temperature Range - Operating -55°C ~ 85°C (TA)
Mounting Type Through Hole
Package / Case Disc 20mm
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 902450-V36ZA80
Ultra Librarian 3D Model Ultra Librarian V36ZA80 CAD Model

Description

The 902450-V36ZA80 is a ZA series varistor from Littelfuse Inc..

  • Type: Transient Voltage Suppressor
  • Package: Bulk
  • Package Type: Disc 20mm
  • Capacitance: 12000 pF @ 1 MHz
  • Varistor Voltage: 32.4V to 39.6V
  • Surge Current: 2 kA
  • Maximum AC Voltage: 23V
  • Maximum DC Voltage: 28V
  • Energy Rating: 160J
  • Mounting Type: Through Hole
  • Operating Temperature: -55°C to 85°C
