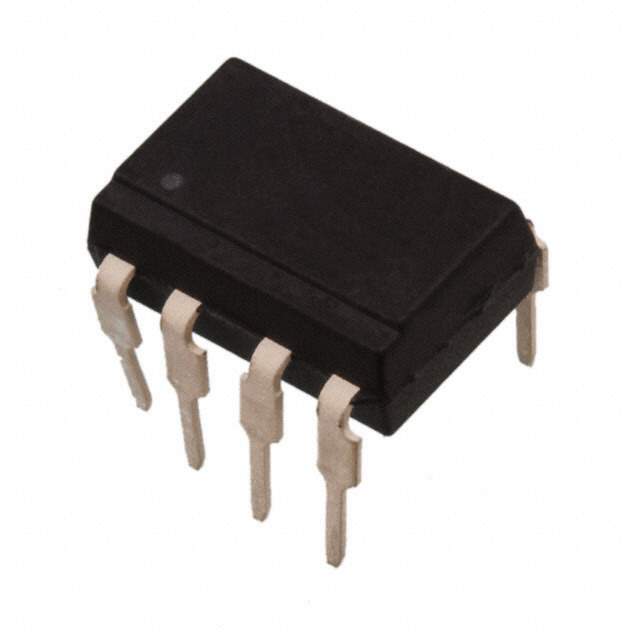

TLP321-2X Real Image
Same model may have multiple batches, images only for reference.

TLP321-2X

Part No TLP321-2X
Manufacturer Isocom Components 2004 LTD
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5.3KV 2CH TRANS 8DIP
Datasheet
TLP321-2X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Isocom Components 2004 LTD
Packaging Tube/Rail
Status Active
Number of Channels 2
Isolation Voltage 5300Vrms
Minimum DC Current Transfer Ratio 50% @ 5mA
Maximum DC Current Transfer Ratio 600% @ 5mA
Switching Turn-On and Turn-Off Time 3μs, 3μs
Rise and Fall Time 2μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Forward Voltage 1.15V
Continuous forward current- Max 50mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -55°C to 100°C
Mounting Through Hole
Win Source Part Number 1108921-TLP321-2X
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1,600
Ultra Librarian 3D Model Ultra Librarian TLP321-2X CAD Model

Description

The TLP321-2X is an optoisolator transistor output with a number of channels of 2 and a minimum DC current transfer ratio of 50% @ 5mA.

  • Manufacturer: Isocom Components 2004 LTD
  • Product Name: TLP321-2X
  • Number of Channels: 2
  • DC Current Transfer Ratio: 50% @ 5mA (minimum)
  • Application: Isolator
  • Maximum Output Voltage: 80V
  • Mounting Type: Through-Hole
