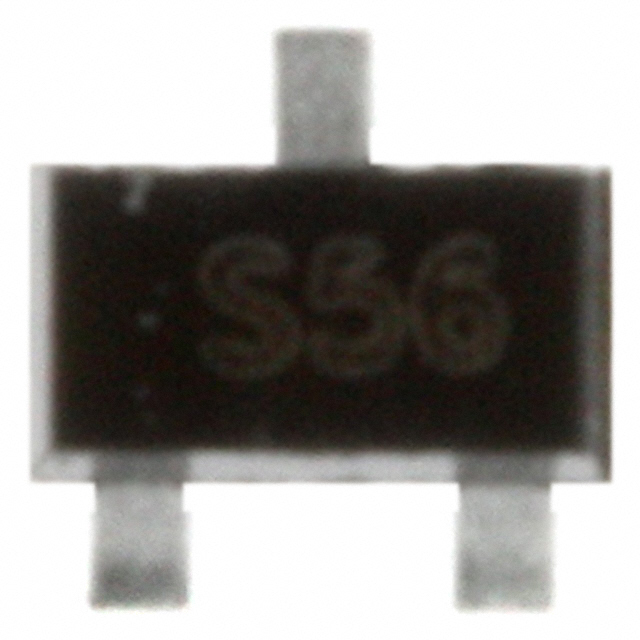

Same model may have multiple batches, images only for reference.
FJY4006R Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

FJY4006R

Part No FJY4006R
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors (BJT) - Single, Pre - Biased
Description TRANS PREBIAS PNP 200MW SOT523F
Datasheet
FJY4006R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Transistor Polarity PNP - Pre-Biased
Maximum Current Collector 100mA
VCEO Maximum Collector-Emitter Breakdown Voltage 50V
Resistor - Base (R1) (Ohms) 10k
Resistor - Emitter Base (R2) (Ohms) 47k
Typical Gain (hFE) (Min) 68 @ 5mA, 5V
Max Vce (sat) 300mV @ 500μA, 10mA
Collector Cut-off Current(Max) 100nA (ICBO)
Frequency - Transition 200MHz
Maximum Power Dissipation 200mW
Mounting SMD (SMT)
Case / Package SOT-523F
Win Source Part Number 067296-FJY4006R
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian FJY4006R CAD Model

Description

The 067296-FJY4006R is a PNP pre-biased transistor from Fairchild/ON Semiconductor.

  • Maximum Collector-Emitter Breakdown Voltage: 50V
  • Collector Cut-Off Current: 100nA (ICBO)
  • Typical Gain: 68 @ 5mA, 5V
  • Maximum Power Dissipation: 200mW
  • Maximum Vce (sat): 300mV @ 500μA, 10mA
  • Frequency Transition: 200MHz
  • Mounting Technology: SMD (SMT)
  • Package/Case: SOT-523F
  • Maximum Current Collector: 100mA
  • Supply and Demand Status: Sufficient
