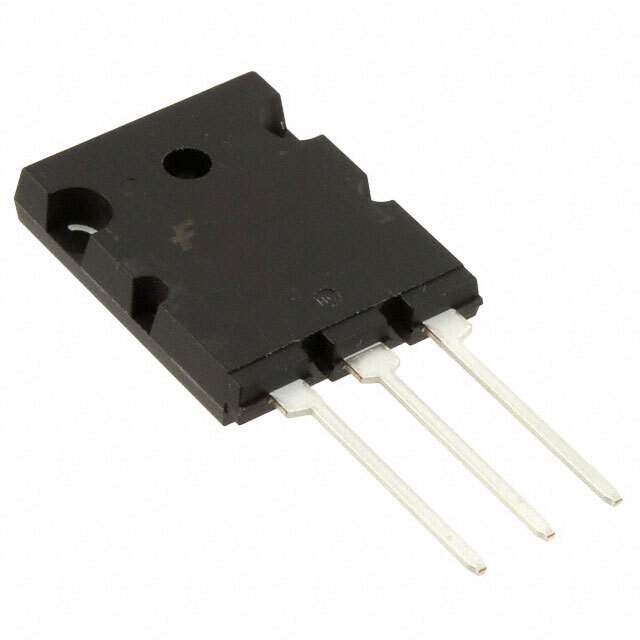

FGL60N100BNTDTU

Name: FGL60N100BNTDTU
Brand: Fairchild/ON Semiconductor
SKU: 130493
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FGL60N100BNTDTU
Manufacturer	Fairchild/ON Semiconductor
Catalog	IGBTs - Single
Description	IGBT 1000V 60A 180W TO264
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Fairchild/ON Semiconductor
Packaging	Tube/Rail
Status	Not For New Designs
IGBT Type	NPT and Trench
VCEO Maximum Collector-Emitter Breakdown Voltage	1000V
Maximum Current Collector	60A
Pulsed Collector Current	120A
Collector-emitter saturation voltage(Max)	2.9V @ 15V, 60A
Maximum Power Dissipation	180W
Input Type	Standard
Gate Charge	275nC
Turn-on and Turn-off delay time	140ns/630ns
Testing Conditions	600V, 60A, 51 Ohm, 15V
Reverse Recovery Time (trr)	1.2μs
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	Through Hole
Case / Package	TO-264
Win Source Part Number	040294-FGL60N100BNTDTU
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	375
Ultra Librarian 3D Model	Ultra Librarian FGL60N100BNTDTU CAD Model

Description

The FGL60N100BNTDTU is an electronic component manufactured by Fairchild/ON Semiconductor. The supply and demand status is balanced. The Win Source Part Number is 040294-FGL60N100BNTDTU.

Packaging: Tube/Rail
Mounting: Through Hole
Reverse Recovery Time (trr): 1.2μs
IGBT Type: NPT and Trench
Maximum Current Collector: 60A
VCEO Maximum Collector-Emitter Breakdown Voltage: 1000V
Maximum Power Dissipation: 180W
