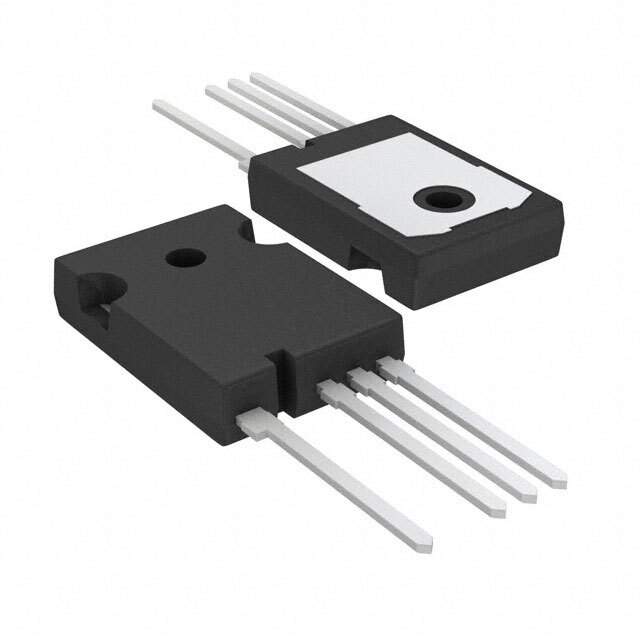

FGH75T65SHDTL4 Real Image
Same model may have multiple batches, images only for reference.

FGH75T65SHDTL4

Part No FGH75T65SHDTL4
Manufacturer Fairchild/ON Semiconductor
Catalog IGBTs - Single
Description IGBT 650V 150A 455W TO-247 / Trans IGBT Chip N-CH 650V 150A 455000mW 4-Pin(4+Tab) TO-247 Tube
Datasheet
FGH75T65SHDTL4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube
IGBT Type Field Stop
Voltage - Collector Emitter Breakdown (Maximum) 650V
Current - Collector (Ic) (Maximum) 150A
Current - Collector Pulsed (Icm) 300A
Vce(on) (Maximum) @ Vge, Ic 2.1V @ 15V, 75A
Power - Max 455W
Switching Energy 1.06mJ (on), 1.56mJ (off)
Input Type Standard
Gate Charge 126nC
Td (on/off) @ 25°C 55ns/189ns
Test Condition 400V, 75A, 15 Ohm, 15V
Reverse Recovery Time (trr) 76ns
Operating Temperature Range -55°C ~ 175°C (TJ)
Mounting Style Through Hole
Package TO-247-4
Manufacturer Package TO-247
Win Source Part Number 774539-FGH75T65SHDTL4
Popularity Medium
Supply and Demand Status Limited
Quantity per package 450
Family Name FGH75T65SHDTL4
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian FGH75T65SHDTL4 CAD Model

Description

The Fairchild/ON Semiconductor FGH75T65SHDTL4 is a field stop type IGBT with a maximum power of 455W. It has a reverse recovery time (trr) of 76ns and a current collector pulsed (Icm) of 300A.

  • Switching Energy: 1.06mJ (on) and 1.56mJ (off)
  • Gate Charge: 126nC
  • Package: TO-247-4
  • Mounting Style: Through-hole
  • Maximum Collector Current (Ic): 150A
  • Maximum Collector-Emitter Breakdown Voltage: 650V
  • ECCN: EAR99
  • Country of Origin: China
  • Packaging: Tube
  • Popularity: Medium
