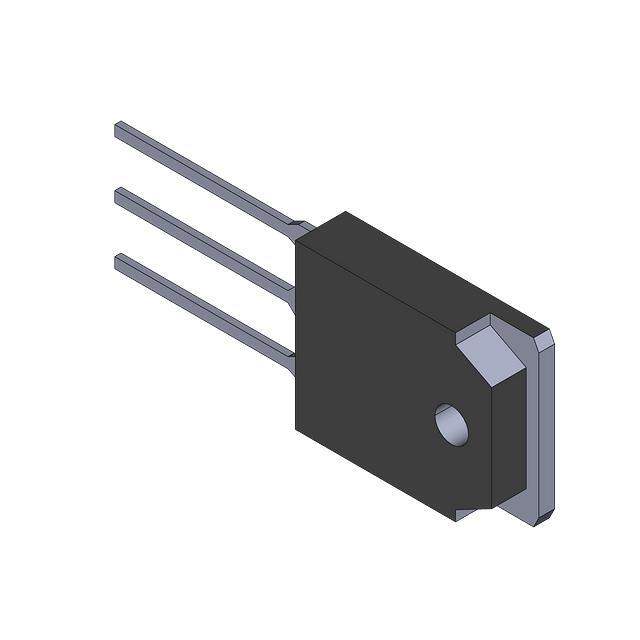

FGA15N120FTDTU

Part No FGA15N120FTDTU
Manufacturer Fairchild/ON Semiconductor
Catalog IGBTs - Single
Description IGBT 1200V 30A 220W TO3PN
Datasheet
FGA15N120FTDTU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Obsolete(EOL)
IGBT Type Trench Field Stop
VCEO Maximum Collector-Emitter Breakdown Voltage 1200V
Maximum Current Collector 30A
Pulsed Collector Current 45A
Collector-emitter saturation voltage(Max) 2V @ 15V, 15A
Maximum Power Dissipation 220W
Input Type Standard
Gate Charge 100nC
Reverse Recovery Time (trr) 575ns
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-3PN
Win Source Part Number 204166-FGA15N120FTDTU
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian FGA15N120FTDTU CAD Model

Description

The Fairchild/ON Semiconductor electronic component with Win Source Part Number 204166-FGA15N120FTDTU.

  • Type: IGBT Trench Field Stop
  • Maximum Power Dissipation: 220W
  • Reverse Recovery Time (trr): 575ns
  • Status: Obsolete (EOL)
  • Supply and Demand: Limited
