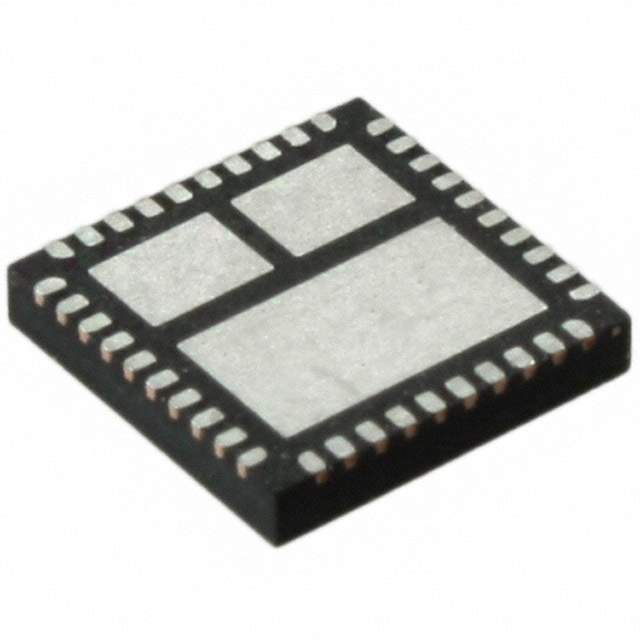

FDMF6823A Real Image
Same model may have multiple batches, images only for reference.

FDMF6823A

Part No FDMF6823A
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - Full, Half - Bridge Drivers
Description Extra-Small, High-Performance, High-Frequency DrMOS Module
Datasheet
FDMF6823A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Fairchild/ON Semiconductor
Series XS DrMOS
Packaging Reel - TR
Output Configuration Half Bridge
Applications Synchronous Buck Converters
Interface PWM
Load Type Inductive
Technology DrMOS
Rds On (Typ) 1 Ohm LS, 1 Ohm HS
Output Current per Channel 60A
Operating Supply Voltage 4.5 V ~ 5.5 V
Voltage - Load 3 V ~ 16 V
Operating Temperature Range -40°C ~ 150°C (TJ)
Features Bootstrap Circuit, Status Flag
Fault Protection Over Temperature, Shoot-Through, UVLO
Mounting SMD
Package 40-PowerTFQFN
Manufacturer Package 40-PQFN (6x6)
Win Source Part Number 1173832-FDMF6823A
Manufacturer Homepage www.fairchildsemi.com
Popularity Medium
Supply and Demand Status Balance
Family Name FDMF6823A
Introduction Date March 02, 2012
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2027
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FDMF6823A CAD Model

Description

The FDMF6823A is a DrMOS module designed for use in synchronous buck converters.

  • Series: XS DrMOS
  • Manufacturer: Fairchild/ON Semiconductor
  • Package: 40-PowerTFQFN
  • Features: Bootstrap circuit, status flag, fault protection (over temperature, shoot-through, and UVLO)
  • Output Configuration: Half bridge
  • Voltage Load: 3 V to 16 V
  • Load Type: Inductive
  • Rds On (Typ): 1 Ohm LS, 1 Ohm HS
  • Interface: PWM
  • Output Current per Channel: 60A
  • Halogen-Free: Yes
  • RoHS Compliant: Yes
  • Supply and Demand Status: balanced
  • Package Quantity: 3k pcs
