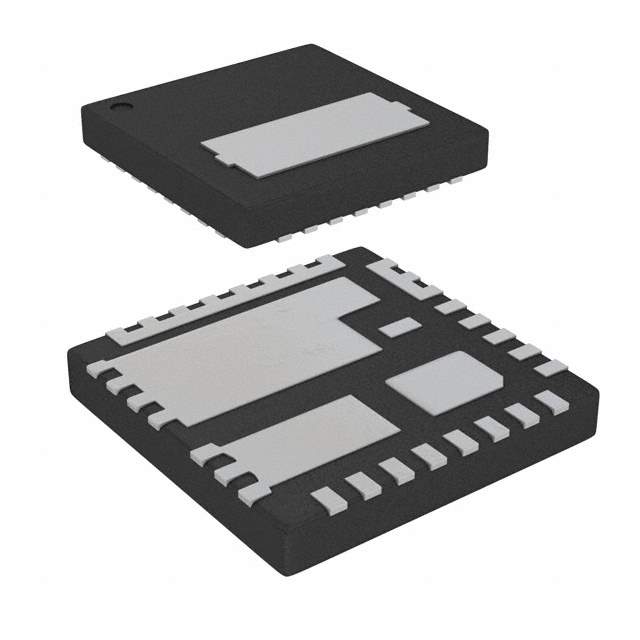

FDMF5821DC Real Image
Same model may have multiple batches, images only for reference.

FDMF5821DC

Part No FDMF5821DC
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - Full, Half - Bridge Drivers
Description FDMF5821DC . Smart Power Stage (SPS) Module with Integrated Temperature Monitor
Datasheet
FDMF5821DC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Fairchild/ON Semiconductor
Series PowerTrench, SyncFET
Packaging Reel - TR
Output Configuration Half Bridge
Applications Synchronous Buck Converters
Interface PWM
Load Type Inductive
Technology UMOS
Rds On (Typ) 470 mOhm LS, 680 mOhm HS
Output Current per Channel 60A
Operating Supply Voltage 4.5 V ~ 5.5 V
Voltage - Load 4.5 V ~ 16 V
Operating Temperature Range -40°C ~ 125°C (TJ)
Features Bootstrap Circuit, Latch Function, Status Flag
Fault Protection Over Temperature, UVLO
Mounting SMD
Package 31-PowerWFQFN
Manufacturer Package 31-PQFN (5x5)
Win Source Part Number 1173825-FDMF5821DC
Manufacturer Homepage www.fairchildsemi.com
Family Name FDMF5821DC
Introduction Date September 27, 2013
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2022
Popularity Medium
Supply and Demand Status Limited
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FDMF5821DC CAD Model

Description

The FDMF5821DC is a PowerTrench, SyncFET series of integrated circuits (ICs) manufactured by Fairchild/ON Semiconductor.

  • Output Configuration: half-bridge
  • Output Current per Channel: 60A
  • Package: 31-PowerWFQFN package
  • Mounting: using SMD technology.
  • Operating Supply Voltage: 4.5V to 5.5V
  • Operating Temperature Range: -40°C to 125°C (TJ)
  • Features: bootstrap circuit, latch function, and status flag functionalities.
  • Compliance: compliant with halogen-free regulations
  • Popularity: medium
  • Estimated EOL Date: 2022
