6678272521 FAIR-RITE PRODUCTS – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

6678272521

Part No 6678272521
Manufacturer FAIR-RITE PRODUCTS
Catalog Ferrite Cores
Description FERRITE CORE PQ 78 SET
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Core Type PQ
Material 78
Tolerance ±25%
Gap Ungapped
Initial Permeability (µi) 2300
Core Factor (ΣI/A) mm⁻¹ 45.9
Effective Length (le) mm 54.0
Effective Area (Ae) mm2 117.7
Minimum Core Cross Section (Amin) mm2 113.1
Effective Magnetic Volume (Ve) mm3 6359.0
Finish Uncoated
Height 0.492" (12.50mm)
Width 0.748\
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1528113-6678272521
Ultra Librarian 3D Model Ultra Librarian 6678272521 CAD Model

Description

N

You May Also Be Interested in

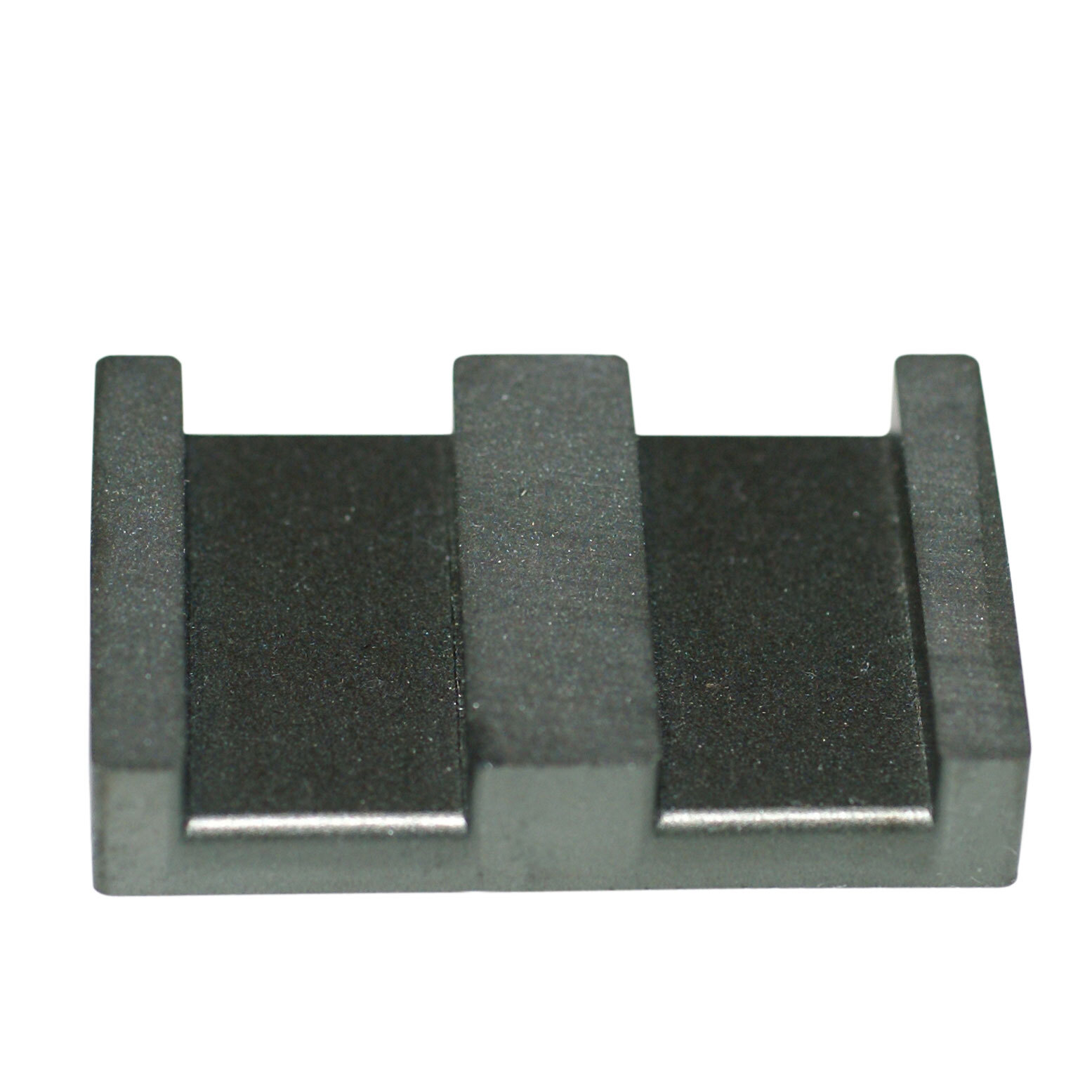

Picture of B66371G2400X127
