The XRT83VL38IB is an Octal T1/E1/J1 Long Haul/Short Haul Line Interface Unit (LIU) manufactured by MaxLinear (formerly Exar Corporation). It's designed to provide a complete physical layer interface between network equipment and T1, E1, and J1 lines.

Applications:

• Telecommunications Equipment: Used in central office switches, PBXs, and other telecom equipment.
• Data Communication Equipment: Implemented in routers, multiplexers, and other data communication devices.
• Wireless Base Stations: Found in wireless base stations for connecting to the backhaul network.
• Voice over IP (VoIP) Gateways: Utilized in VoIP gateways for connecting to the PSTN.
• Test and Measurement Equipment: Employed in test and measurement equipment for analyzing T1/E1/J1 signals.

Features:

• Octal LIU: Provides eight independent T1/E1/J1 line interfaces.
• Long Haul/Short Haul: Supports both long haul and short haul line interface applications.
• Integrated Clock Recovery: Includes integrated clock recovery circuitry.
• Jitter Attenuation: Provides jitter attenuation to improve signal quality.
• Line Build-Out: Supports programmable line build-out.
• Diagnostic Capabilities: Offers comprehensive diagnostic capabilities for line monitoring and troubleshooting.
• Low Power Consumption: Designed for low power consumption.

Benefits:

• High Integration: Reduces component count and simplifies system design.
• Improved Signal Quality: Jitter attenuation and clock recovery improve signal quality.
• Flexible Configuration: Programmable features allow for flexible configuration to meet different application requirements.
• Reliable Performance: Provides reliable and consistent performance in telecom and data communication applications.

Additional Details:

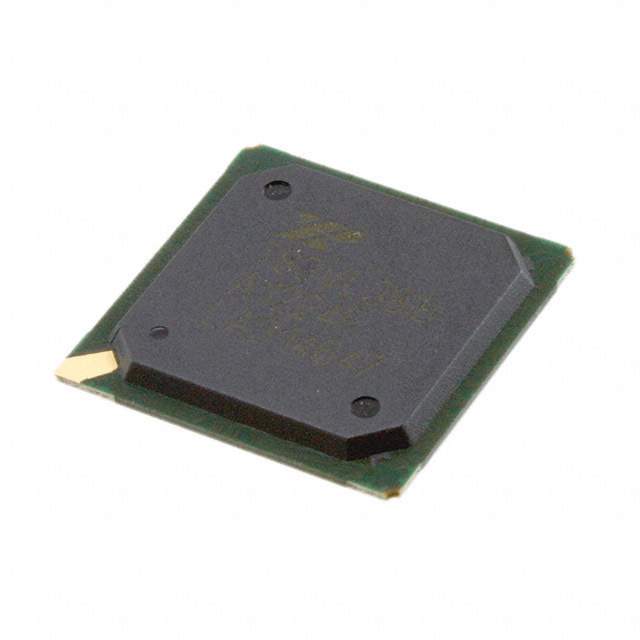

The XRT83VL38IB is designed to meet the stringent requirements of T1/E1/J1 standards. It typically operates with a supply voltage of 3.3V or 5V. The device is available in a BGA (Ball Grid Array) package. Detailed specifications, application circuits, and performance data can be found in the official datasheet from MaxLinear.
