Same model may have multiple batches, images only for reference.

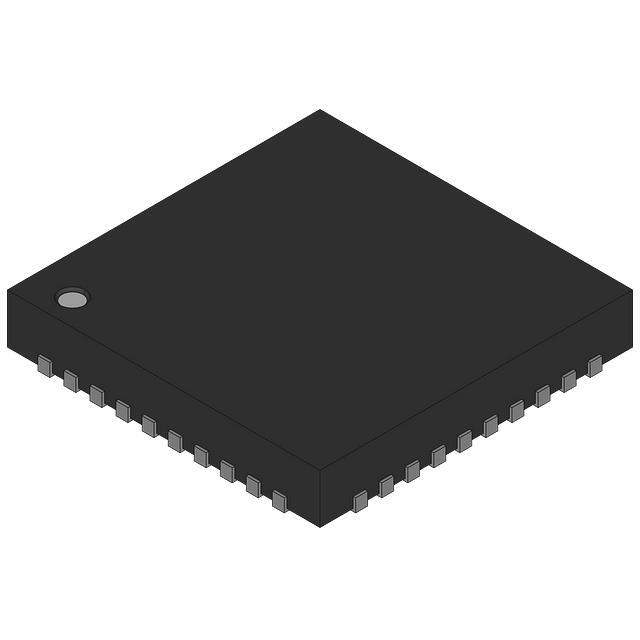

CYRF6986-40LTXC Real Image
Same model may have multiple batches, images only for reference.

CYRF6986-40LTXC

Part No CYRF6986-40LTXC
Manufacturer Cypress Semiconductor Corp
Catalog RF Transceiver ICs
Description IC RF TXRX ISM>1GHZ 40UFQFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Cypress Semiconductor Corp
Packaging Tray
Part Status Obsolete (End Of Life)
Type TxRx Only
RF Family/Standard General ISM > 1GHZ
Modulation DSSS, GFSK
Frequency 2.4GHz
Data Rate (Maximum) 1Mbps
Power - Output -5dBm
Sensitivity -90dBm
Serial Interfaces SPI
GPIO 3
Supply Voltage (V) 2.7V ~ 3.6V
Current - Receiving 21.2mA
Current - Transmitting 26.2mA
Temperature Range - Operating 0°C ~ 70°C
Mounting Style SMD
Manufacturer Package 40-UFQFN Exposed Pad
Supplier Device Package 40-QFN (6x6)
Manufacturer Pack Quantity 490
MSL Level 3 (168 Hours)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813793-CYRF6986-40LTXC
Ultra Librarian 3D Model Ultra Librarian CYRF6986-40LTXC CAD Model

Description

The CYRF6986-40LTXC is an electronic component manufactured by Cypress Semiconductor Corp.

  • Frequency: 2.4GHz
  • Protocol: DSSS, GFSK
  • Current (Transmitting): 26.2mA
  • Current (Receiving): 21.2mA
  • Sensitivity: -90dBm
  • Power Output: -5dBm
