Same model may have multiple batches, images only for reference.

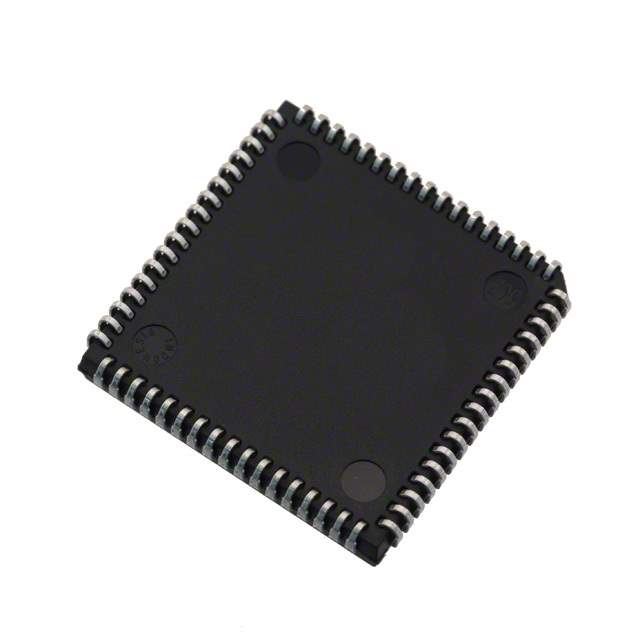

XR82C684CJ-F Real Image
Same model may have multiple batches, images only for reference.

XR82C684CJ-F

Part No XR82C684CJ-F
Manufacturer Exar Corporation
Catalog Interface - UARTs (Universal Asynchronous Receiver Transmitter)
Description IC UART CMOS QUAD 68PLCC
Datasheet
XR82C684CJ-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Exar Corporation
Packaging Tube/Rail
Status Active
Features Internal Oscillator, Timer/Counter
Number of Channels 4, QUART
Data Rate (Max) 1Mbps
Supply Voltage - Operating 5V
Mounting SMD (SMT)
Case / Package 68-PLCC (24.23x24.23)
Win Source Part Number 416542-XR82C684CJ
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian XR82C684CJ-F CAD Model

Description

The Exar Corporation integrated circuit is a 4-channel QUART device with an internal oscillator and timer/counter.

  • Mounting: Surface Mountable
  • Package: 68-PLCC (24.23x24.23)
  • Maximum Data Rate: 1Mbps
  • Ideal for: various electronic applications where a reliable and high-performance integrated circuit is needed
