Same model may have multiple batches, images only for reference.

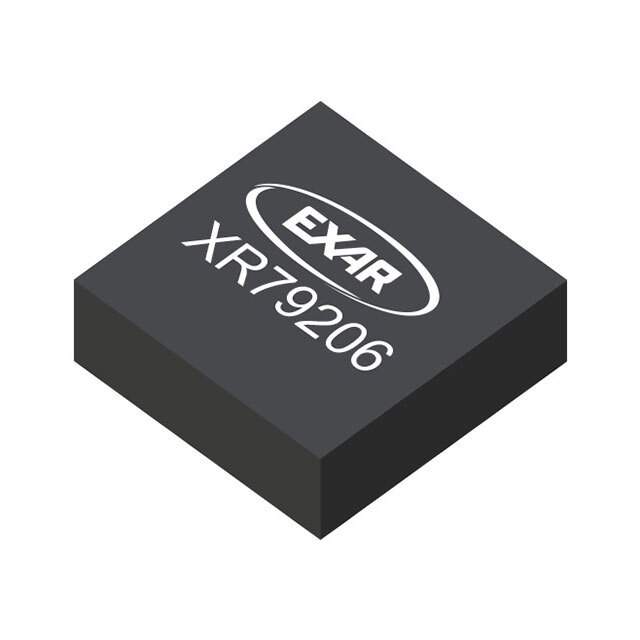

XR79206EL-F Real Image
Same model may have multiple batches, images only for reference.

XR79206EL-F

Part No XR79206EL-F
Manufacturer Exar Corporation
Catalog Power Supplies Board Mount DCDC Converters
Description POWER MOD BUCK REG 40V 6A 72QFN / Module DC-DC 24VIN 1-OUT 0.6V 6A Automotive 72-Pin QFN EP Tray
Datasheet
XR79206EL-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Exar Corporation
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Input Voltage MIN 5V
Voltage Input MAX 40V
Voltage - Output 1 0.6 ~ 13.2 V
Current - Output (Maximum) 6A
Applications ITE (Commercial)
Features OCP, OTP, SCP, UVLO
Operating Temperature Range -40°C ~ 125°C
Efficiency 95%
Mounting SMD
Package 72-PowerBFQFN Module
Dimension 0.39" L x 0.39" W x 0.16" H (10.0mm x 10.0mm x 4.0mm)
Manufacturer Package 72-QFN (10x10)
Win Source Part Number 800162-XR79206EL-F
Popularity Medium
Supply and Demand Status Limited
Family Name XR79206
Introduction Date March 04, 2016
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian XR79206EL-F CAD Model

Description

The Exar Corporation XR79206EL-F non-isolated PoL module manufactured by Exar Corporation is designed for ITE (Commercial) applications.

  • Efficiency: 95%
  • Package: 72-PowerBFQFN module
  • Protections: Over-current, over-temperature, short-circuit, under-voltage lockout
