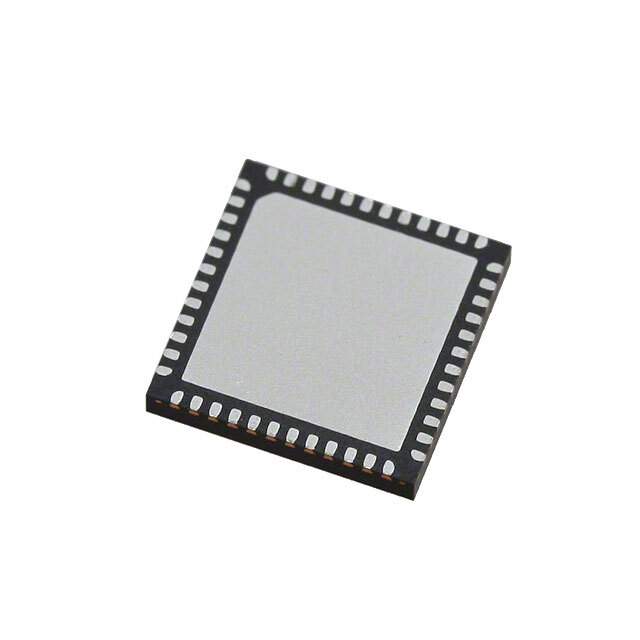

XR16M564IL48-F Real Image
Same model may have multiple batches, images only for reference.

XR16M564IL48-F

Part No XR16M564IL48-F
Manufacturer Exar Corporation
Catalog Interface - UARTs (Universal Asynchronous Receiver Transmitter)
Description IC UART FIFO 32B QUAD 48QFN / UART 4-CH 32byte FIFO 1.8V/2.5V/3.3V 48-Pin QFN EP
Datasheet
XR16M564IL48-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Exar Corporation
Packaging Tray
Features Internal Oscillator, Timer/Counter
Number of Channels 4, QUART
FIFO's 32 Byte
Protocol RS232
Data Rate (Maximum) 16Mbps
Operating Supply Voltage 1.62 V ~ 3.63 V
With Auto Flow Control Yes
With IrDA Encoder/Decoder Yes
With False Start Bit Detection Yes
With Modem Control Yes
Mounting SMD
Package 48-VFQFN Exposed Pad
Manufacturer Package 48-QFN-EP (7x7)
Win Source Part Number 800140-XR16M564IL48-F
Popularity Medium
Supply and Demand Status Limited
Family Name XR16M564
Introduction Date May 01, 2008
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian XR16M564IL48-F CAD Model

Description

The XR16M564IL48-F is an integrated circuit manufactured by Exar Corporation.

  • Supply and Demand Status: Limited
  • Type: Quad Universal Asynchronous Receiver/Transmitter (QUART)
  • Channels: Four
  • Protocol: RS232
  • Data Rate (Maximum): 16Mbps
  • FIFOs: 32-byte
  • Features: Auto flow control, false start bit detection
