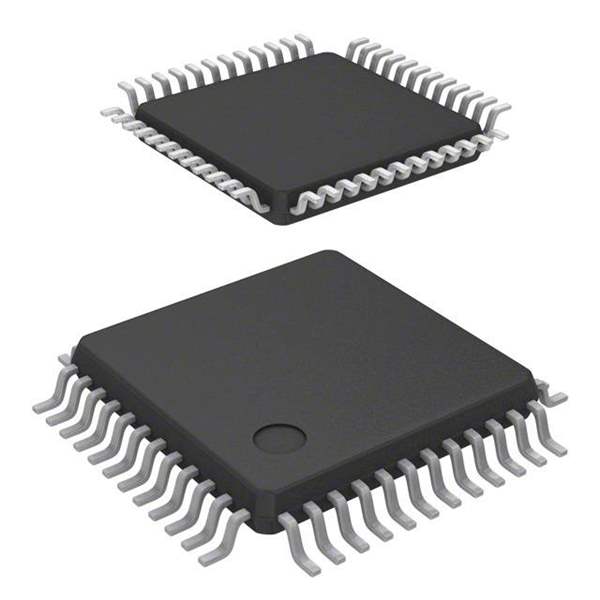

The XR16L2550 is a dual universal asynchronous receiver/transmitter (UART) with FIFOs manufactured by Exar Corporation. It's designed to provide asynchronous serial communication with enhanced features for efficient data handling. This UART is commonly used in applications requiring reliable serial data exchange with minimal processor intervention.

Applications

• Serial Ports: Used in computers, embedded systems, and industrial automation equipment to provide serial communication interfaces.
• Modems: Integrates into modem devices to handle serial communication protocols for data transmission.
• Printers: Enables serial communication between a computer and a printer for data printing.
• Industrial Control Systems: Facilitates communication between a central controller and various peripherals or sensors.
• Networking Equipment: Provides serial communication for configuration and debugging purposes.

Features

• Dual UART: Provides two independent UART channels in a single package.
• 16-Byte FIFO: Features a 16-byte FIFO (First-In, First-Out) buffer for both transmit and receive data, reducing CPU overhead.
• Data Rates up to 3 Mbps: Supports high-speed serial communication for faster data transfer rates.
• Automatic Hardware/Software Flow Control: Includes automatic RTS/CTS and Xon/Xoff flow control to prevent data overflow.
• Programmable Baud Rate Generator: Allows flexible baud rate settings to accommodate various communication protocols.
• Interrupt Generation: Generates interrupts to signal various events, such as data reception and transmission completion.

Benefits

• Improved Data Throughput: The 16-byte FIFO buffers reduce the need for frequent CPU intervention, improving overall data throughput.
• Reduced CPU Overhead: The FIFO buffers and automatic flow control mechanisms minimize the CPU workload for serial communication tasks.
• Enhanced System Performance: High data rates and efficient data handling contribute to improved system performance.
• Flexible Configuration: Programmable baud rate generator allows the UART to be adapted to different communication protocols.
• Reliable Data Transfer: Automatic flow control ensures reliable data transfer by preventing data overflow.

Additional Details

The XR16L2550 typically operates with a supply voltage range of 3.3V or 5V. It supports 5, 6, 7, and 8 data bits, with odd, even, or no parity. The device also includes a comprehensive set of control and status registers, allowing for precise configuration and monitoring of the UART channels. The interrupt system is designed to minimize latency and ensure timely handling of serial communication events. The datasheet provides detailed electrical characteristics, timing diagrams, and register descriptions.
