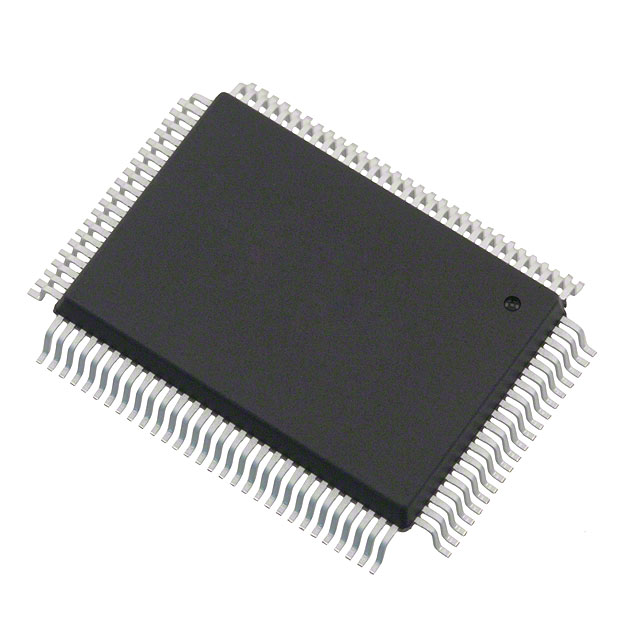

The XR16C864CQ-0A-EVB is an evaluation board for the XR16C864, a quad universal asynchronous receiver/transmitter (UART) with enhanced features. This evaluation board provides a convenient platform for testing and evaluating the capabilities of the XR16C864 UART.

Applications:

• Evaluation and prototyping of UART applications
• Software driver development and testing
• System integration and verification
• Serial communication interface testing

Features:

• On-board XR16C864 quad UART
• RS-232 interface connectors for all four UART channels
• Test points for accessing UART signals
• Onboard power supply regulation
• Jumpers for configuring UART settings
• Example software and documentation

Benefits:

• Simplified evaluation and prototyping of the XR16C864 UART
• Reduced development time and effort
• Easy access to UART signals for testing and debugging
• Comprehensive documentation and software examples

Additional Details:

The XR16C864CQ-0A-EVB allows developers to quickly and easily evaluate the features and performance of the XR16C864 quad UART. The board provides RS-232 interface connectors for all four UART channels, allowing developers to connect the UART to external devices such as computers, modems, and serial printers. Test points are provided for accessing UART signals, making it easy to probe the signals with an oscilloscope or logic analyzer. The board includes onboard power supply regulation, which ensures that the UART is powered correctly. Jumpers are provided for configuring UART settings such as baud rate, data format, and parity. Example software and documentation are included to help developers get started quickly. The XR16C864 itself features 64-byte FIFOs, automatic hardware and software flow control, and support for data rates up to 1.5 Mbps. It is suitable for a wide range of applications requiring high-performance serial communication.
