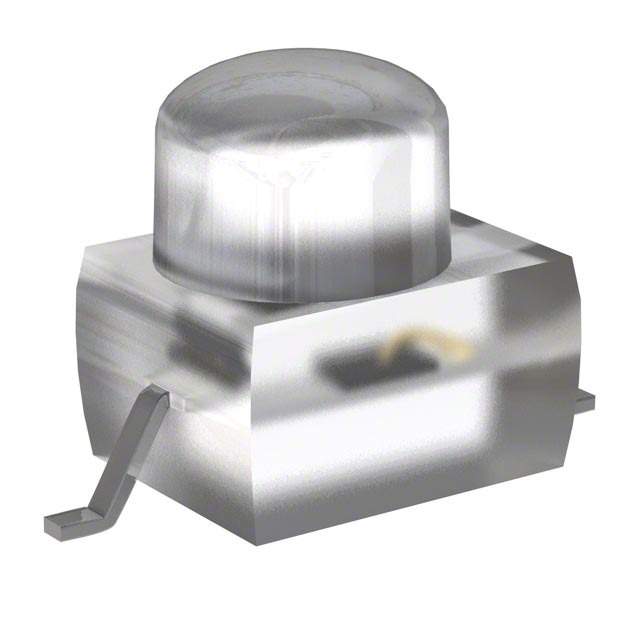

PT91-21C/TR7 Real Image
Same model may have multiple batches, images only for reference.

PT91-21C/TR7

Part No PT91-21C/TR7
Manufacturer Everlight Electronics Co Ltd
Catalog Optical Sensors - Phototransistors
Description SENSOR PHOTO 940NM TOP VIEW 2SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Everlight Electronics Co Ltd
Packaging Reel
Voltage - Collector Emitter Breakdown (Maximum) 30V
Current - Collector (Ic) (Maximum) 20mA
Current - Dark (Id) (Maximum) 100nA
Wavelength 940nm
Power - Max 75mW
Mounting Style SMD
Orientation Top View
Temperature Range - Operating -25°C ~ 85°C
Manufacturer Package 2-SMD, Gull Wing
Manufacturer Pack Quantity 1,000
MSL Level 3 (168 Hours)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 800901-PT91-21C/TR7
Ultra Librarian 3D Model Ultra Librarian PT91-21C/TR7 CAD Model

Description

The PT91-21C/TR7 from Everlight Electronics Co Ltd is a surface mount infrared LED.

  • Power Rating: 75mW
  • Viewing Angle: 0°
  • Wavelength: 940nm
  • Current Rating: 20mA
  • Package: 2-SMD gull wing
  • Voltage Rating: 30V
  • Temperature Range: -25°C to 85°C
  • Dark Current: 100nA (maximum)
