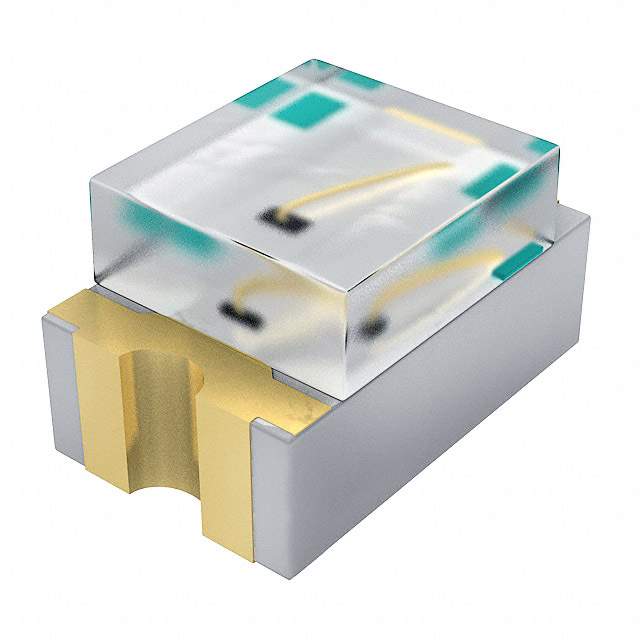

PT17-21C/L41/TR8 Real Image
Same model may have multiple batches, images only for reference.

PT17-21C/L41/TR8

Part No PT17-21C/L41/TR8
Manufacturer Everlight Electronics Co Ltd
Catalog Optical Sensors - Phototransistors
Description PHOTOTRANSISTOR FLAT CLEAR 0805
Datasheet
PT17-21C/L41/TR8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Everlight Electronics Co Ltd
Packaging Reel - TR
Status Active
VCEO Maximum Collector-Emitter Breakdown Voltage 30V
Maximum Current Collector 20mA
Current - Dark (Id) (Max) 100nA
Wavelength 940nm
Maximum Power Dissipation 75mW
Mounting SMD (SMT)
Orientation Top View
Temperature Range - Operating -25°C to 85°C (TA)
Dimension 0805 (2012 Metric)
Win Source Part Number 1090475-PT17-21C/L41/TR8
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PT17-21C/L41/TR8 CAD Model

Description

The Everlight Electronics Co Ltd 940nm Top View SMD (SMT) Sensor/Transducer is an active component that operates in a temperature range of -25°C to 85°C (TA).

  • Operating Temperature: -25°C to 85°C (TA)
  • Dimension: 0805 (2012 Metric)
  • Maximum Power Dissipation: 75mW
  • Maximum Current Collector: 20mA
  • Maximum Collector-Emitter Breakdown Voltage: 30V
  • Viewing Angle: Not specified
  • Current-Dark (Id) (Max): 100nA
  • Supply and Demand Status: Balanced
