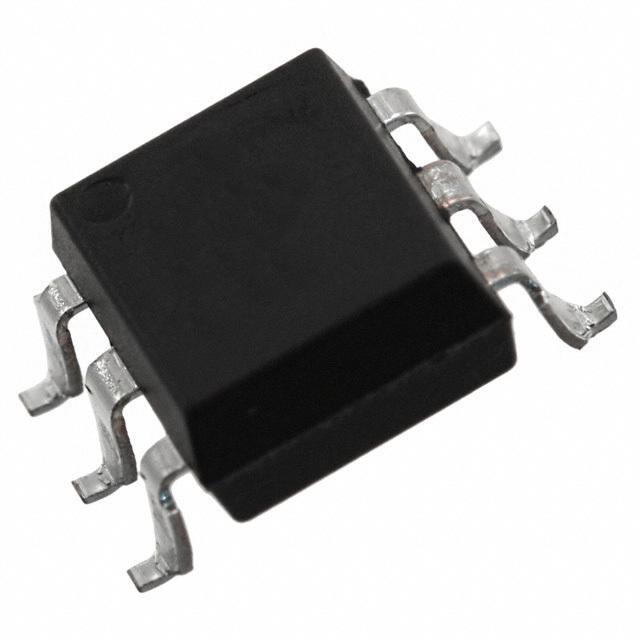

EL3052 Everlight Electronics Co Ltd
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Everlight Electronics Co Ltd
Packaging Reel - TR
Status Active
Output Type Triac
Zero Crossing Circuit No
Number of Channels 1
Isolation Voltage 5000Vrms
Voltage - Off State 600V
Static dV/dt (Min) 1kV/μs
Current - LED Trigger (Ift) (Max) 10mA
Current - On State (It (RMS)) (Max) 100mA
Current - Hold (Ih) 250μA (Typ)
Forward Voltage 1.18V
Continuous forward current- Max 60mA
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 6-SMD
Approvals CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL, VDE
Win Source Part Number 094282-EL3052
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name EL3052
Introduction Date August 19, 2008
ECCN EAR99
Country of Origin Taiwan, China
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian EL3052 CAD Model

Description

EL3052 Optoisolator

The EL3052 Optoisolator is a high-performance electronic component designed for effective electrical isolation and signal transmission. This device is crucial in applications where it is necessary to protect sensitive components from voltage spikes and transients.

Features and Benefits

  • High Isolation Voltage: Provides reliable protection against voltage variations.
  • Compact Design: Easy to integrate into a wide range of circuit designs.
  • Wide Operating Temperature Range: Ensures performance stability in various environmental conditions.

Applications

  • Power Supply Regulation
  • Signal Isolation
  • Switching Power Supplies

Additional Details

The EL3052 is an ideal solution for systems requiring electrical isolation without compromising on signal integrity.
