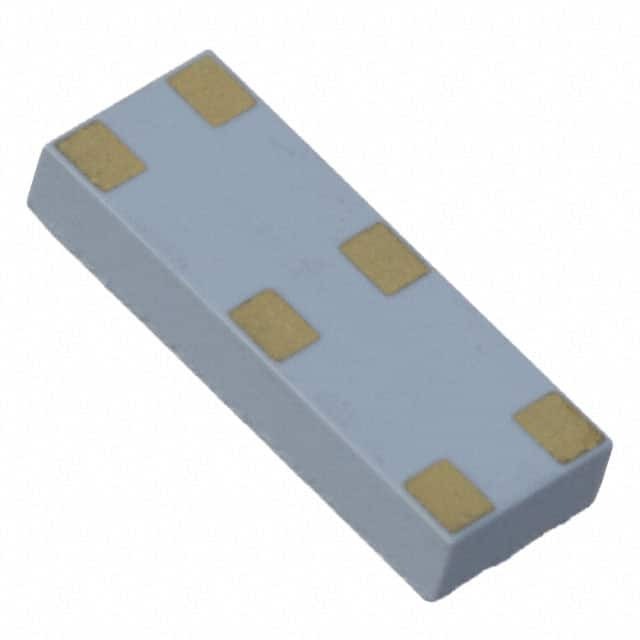

Same model may have multiple batches, images only for reference.
M830510 Ethertronics/AVX
Same model may have multiple batches, images only for reference.

M830510

Part No M830510
Manufacturer Ethertronics/AVX
Catalog RF Antennas
Description RF ANT 2.4GHZ/5.4GHZ CHIP SLD  /  2.4GHz, 5.4GHz Bluetooth, Wi-Fi, WLAN, Zigbee™ Chip RF Antenna 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz 1.1dBi, 3.2dBi Solder Surface Mount
Datasheet
M830510 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Ethertronics/AVX
Series Savvi™
Package Tape & Reel
Product Status Obsolete
RF Family/Standard 802.15.4, Bluetooth, WiFi
Frequency Group UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band) 2.4GHz, 5.4GHz
Frequency Range 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz
Antenna Type Chip
Number of Bands 2
VSWR 2.6, 3
Gain 1.1dBi, 3.2dBi
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.052" (1.33mm)
Applications Bluetooth, Wi-Fi, WLAN, Zigbee™
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8529.10.9100
Other Names M830510-1K-ND,939-1039-1,939-1039-2,M8305101K,M830510-1K,Q6741213,939-1039-6
Standard Package 1,000
Win Source Part Number 1148438-M830510
Ultra Librarian 3D Model Ultra Librarian M830510 CAD Model

Description

The M830510 is a Savvi™ RF antenna designed by Ethertronics/AVX.

  • Antenna Type: Chip
  • Termination: Solder
  • Power (Max): 2 W
  • Frequency Range: 2.4GHz to 2.5GHz and 4.9GHz to 5.8GHz
  • Package: Tape and Reel
  • Standard Package: 1,000
  • VSWR: 2.6 to 3
  • Gain: 1.1dBi to 3.2dBi
  • Application: Bluetooth, Wi-Fi, WLAN, and Zigbee™ applications
