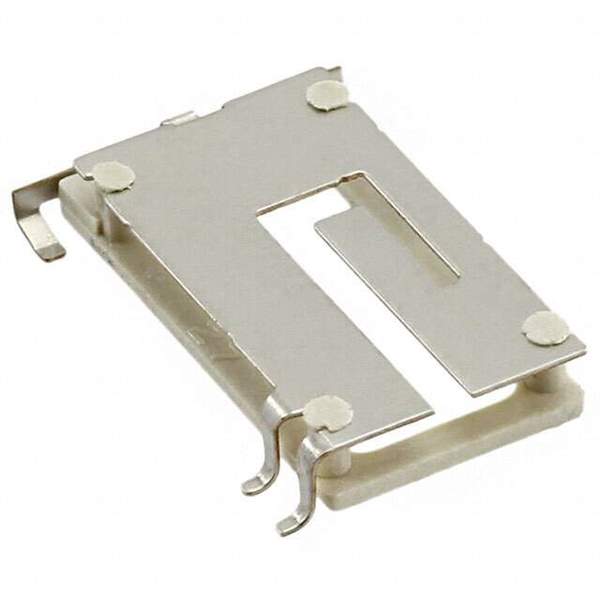

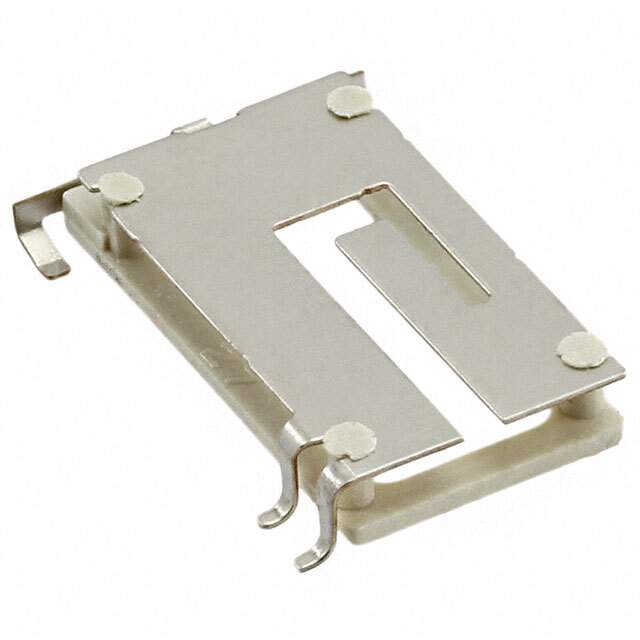

GB04001 Real Image
Same model may have multiple batches, images only for reference.

GB04001

Part No GB04001
Manufacturer Ethertronics/AVX
Catalog RF Antennas
Description RF ANT 2.4GHZ STAMPED MET SLD / 2.4GHz Bluetooth, Wi-Fi, WLAN, Zigbee™ Stamped Metal RF Antenna 2.4GHz ~ 2.5GHz 1dBi Solder Surface Mount
Datasheet
GB04001 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Ethertronics/AVX
Series Prestta™
Package Tape & Reel
Product Status Obsolete
RF Family/Standard 802.15.4, Bluetooth, WiFi
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.4GHz ~ 2.5GHz
Antenna Type Stamped Metal
Number of Bands 1
VSWR 2.1
Gain 1dBi
Power - Max 2 W
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.118" (3.00mm)
Applications Bluetooth, Wi-Fi, WLAN, Zigbee™
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8529.10.9100
Other Names 939-1042-2,939-1042-ND,939-1042-6,40-900141-02,939-1042,939-1042-1
Standard Package 1,000
Win Source Part Number 1167374-GB04001
Ultra Librarian 3D Model Ultra Librarian GB04001 CAD Model

Description

The Prestta™ GB04001 is an RF antenna designed for use in Bluetooth, Wi-Fi, WLAN, and Zigbee™ applications.

  • Series: Prestta™
  • Manufacturer: Ethertronics/AVX
  • Product: GB04001
  • Application: Bluetooth, Wi-Fi, WLAN, and Zigbee™
  • Status: Obsolete
  • Standard Package: 1,000
  • Frequency Range: 2.4GHz ~ 2.5GHz
  • Gain: 1dBi
  • VSWR: 2.1
