Same model may have multiple batches, images only for reference.

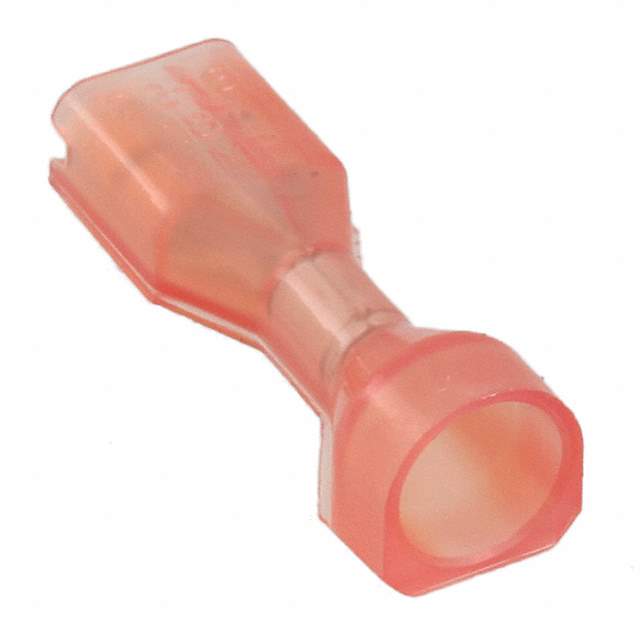

2-520262-2 Real Image
Same model may have multiple batches, images only for reference.

2-520262-2

Part No 2-520262-2
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 18-22AWG 0.187 / 0.187" (4.75mm) Quick Connect Female 18-22 AWG Crimp Connector Fully Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type Standard
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.020" (0.51mm)
Length - Overall 0.935" (23.75mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Fully Insulated
Mounting Free Hanging (In-Line)
Color Red
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.230" (5.84mm)
Base Product Number 520262
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 25202622,-2-520262-2-SI,2266-2-520262-2,2-520262-2-ND,A113202
Standard Package 1,000
Win Source Part Number 1333569-2-520262-2
Ultra Librarian 3D Model Ultra Librarian 2-520262-2 CAD Model

Description

The 1333569-2-520262-2 is a female quick connect, quick disconnect connector terminal from TE Connectivity AMP Connectors.

  • Color: Red
  • Insulation: Fully Insulated
  • Termination: Crimp
  • Wire Gauge: 18-22 AWG
  • Contact Material: Brass
  • Contact Finish: Tin
  • Tab Width: 0.187" (4.75mm)
  • Tab Thickness: 0.020" (0.51mm)
  • Insulation Diameter: 0.230" (5.84mm)
  • Overall Length: 0.935" (23.75mm)
  • RoHS Compliant: Yes
