Same model may have multiple batches, images only for reference.

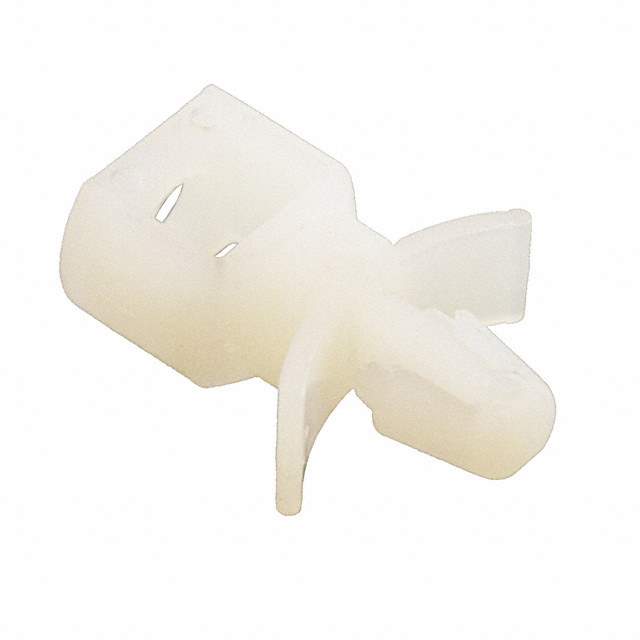

SRLAHS-7-01 Real Image
Same model may have multiple batches, images only for reference.

SRLAHS-7-01

Part No SRLAHS-7-01
Manufacturer Essentra Components
Catalog Board Supports
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Hardware, Fasteners, Accessories>Board Supports
Mfr Essentra Components
Series Richco, SRLAHS
Package Bulk
Holding Type Snap Lock
Mounting Type Snap Rivet
Between Board Height 0.438" (11.13mm) 7/16"
Length - Overall 0.768" (19.50mm)
Support Hole Diameter 0.187" (4.75mm) 3/16"
Support Panel Thickness 0.031" ~ 0.078" (0.79mm ~ 1.98mm)
Mounting Hole Diameter 0.157 ~ 0.161" (4.00 ~ 4.10mm)
Features Winged
Material Nylon
Base Product Number SRLAHS
Other Names 21069150,RPC5182,SRLAHS- 7-01,SRLAHS- 7-01,SRLAHS- 7-01R,SRLAHS-7-01,SRLAHS701
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 3926.90.9985
Win Source Part Number 1275336-SRLAHS-7-01
Ultra Librarian 3D Model Ultra Librarian SRLAHS-7-01 CAD Model

Description

The Richco SRLAHS series winged board support is a high-quality fastener and accessory designed for use in hardware applications.

  • Overall Length: 0.768 inches (19.50mm)
  • Mounting Hole Diameter: 0.157 inches to 0.161 inches (4.00mm to 4.10mm)
  • Holding Type: snap lock
  • Between Board Height: 0.438 inches (11.13mm)
  • Support Hole Diameter: 0.187 inches (4.75mm)
  • Support Panel Thickness: 0.031 inches to 0.078 inches (0.79mm to 1.98mm)
  • Material: nylon
  • Availability: bulk
  • Standard Package: 1,000
