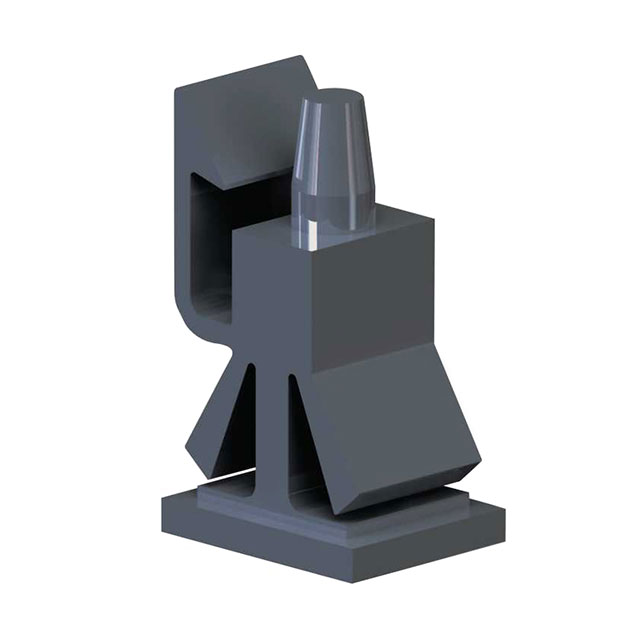

RLEHCBS-8-01BK Essentra Components
Same model may have multiple batches, images only for reference.

RLEHCBS-8-01BK

Part No RLEHCBS-8-01BK
Manufacturer Essentra Components
Catalog Board Supports
Description BRD SPT EDGE HOLD SNP LCK 14.3MM
Datasheet
RLEHCBS-8-01BK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Hardware, Fasteners, Accessories
Manufacturer Essentra Components
Status Active
Holding Type Edge Holding
Mounting Snap Lock
Between Board Height 0.563" (14.30mm)
Length - Overall 0.854" (21.70mm)
Support Hole Diameter 0.156" (3.96mm) 5/32"
Support Panel Thickness 0.063" (1.60mm)
Mounting Hole Diameter 0.375" x 0.313" (9.53mm x 7.95mm) Rectangular
Mounting Panel Thickness 0.063" (1.60mm)
Features Locking, Reverse Mounting
Material Nylon
Win Source Part Number 1024312-RLEHCBS-8-01BK
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian RLEHCBS-8-01BK CAD Model

Description

The Essentra Components RLEHCBS-8-01BK is a locking, reverse mounting edge holding snap lock that is used as a hardware, fastener, and accessory component.

  • Overall Length: 0.854 inches
  • Material: Nylon
  • Mounting Hole Diameter: 0.375 x 0.313 inches
  • Support Hole Diameter: 0.156 inches
  • Support Panel Thickness: 0.063 inches
  • Mounting Panel Thickness: 0.063 inches
  • Supply and Demand Status: Sufficient
