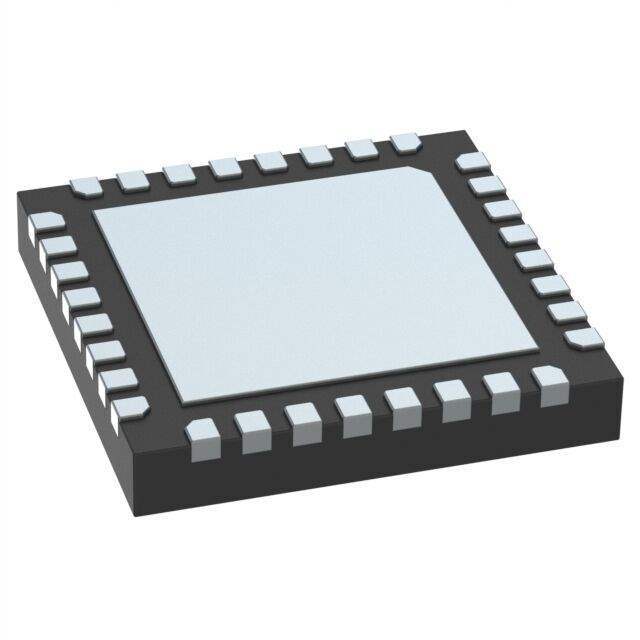

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Package Tape & Reel (TR)
Product Status Obsolete
Type TxRx + MCU
RF Family/Standard Bluetooth, Cellular, WiFi
Protocol 802.11b/g/n
Modulation 64QAM, BPSK, CCK, DSSS, OFDM
Frequency 2.412GHz ~ 2.483GHz
Data Rate (Max) 72.2Mbps
Power - Output 20dBm
Sensitivity -97dBm
Serial Interfaces ADC, GPIO, I²C, I²S, PWM, SDIO, SPI, UART
GPIO 17
Voltage - Supply 2.7V ~ 3.6V
Current - Receiving 72mA ~ 73mA
Current - Transmitting 142mA ~ 197mA
Operating Temperature -40°C ~ 105°C
Grade -
Mounting Type Surface Mount
Package / Case 32-VFQFN Exposed Pad
Supplier Device Package 32-QFN (5x5)
Ultra Librarian 3D Model Ultra Librarian ESP8285H08 CAD Model

Description

IC RF TxRx + MCU Bluetooth, Cellular, WiFi 802.11b/g/n 2.412GHz ~ 2.483GHz 32-VFQFN Exposed Pad
